Aqara Smart Wall Switch Z1 Pro
- Zigbee
Requires a compatible Aqara Zigbee hub.
$70.00 – $99.00
Metal-framed Zigbee 3.0 wall switch with a sliding touch bar for dimming and curtains. One to four gangs, with or without a neutral wire.
- Secure card payment
- Visa & Mastercard
- Official Singapore sets
- Free Singapore delivery
- Local warranty
- GST-inclusive prices
Category: Smart Switches
Inspiration at your fingertips.
A metal-framed smart switch with a sliding touch bar — dim lights, set the mood, and draw the curtains with one glide. Zigbee 3.0, works with Apple Home.
- Rated current
- 16ARated current
- Max load
- 2200WMax load
- Press-test cycles
- 100,000Press-test cycles
- Gang options
- 1–4Gang options
- Wireless protocol
- Zigbee 3.0Wireless protocol
Available in Single, Double, Triple and Quadruple Rocker versions, in white or black.

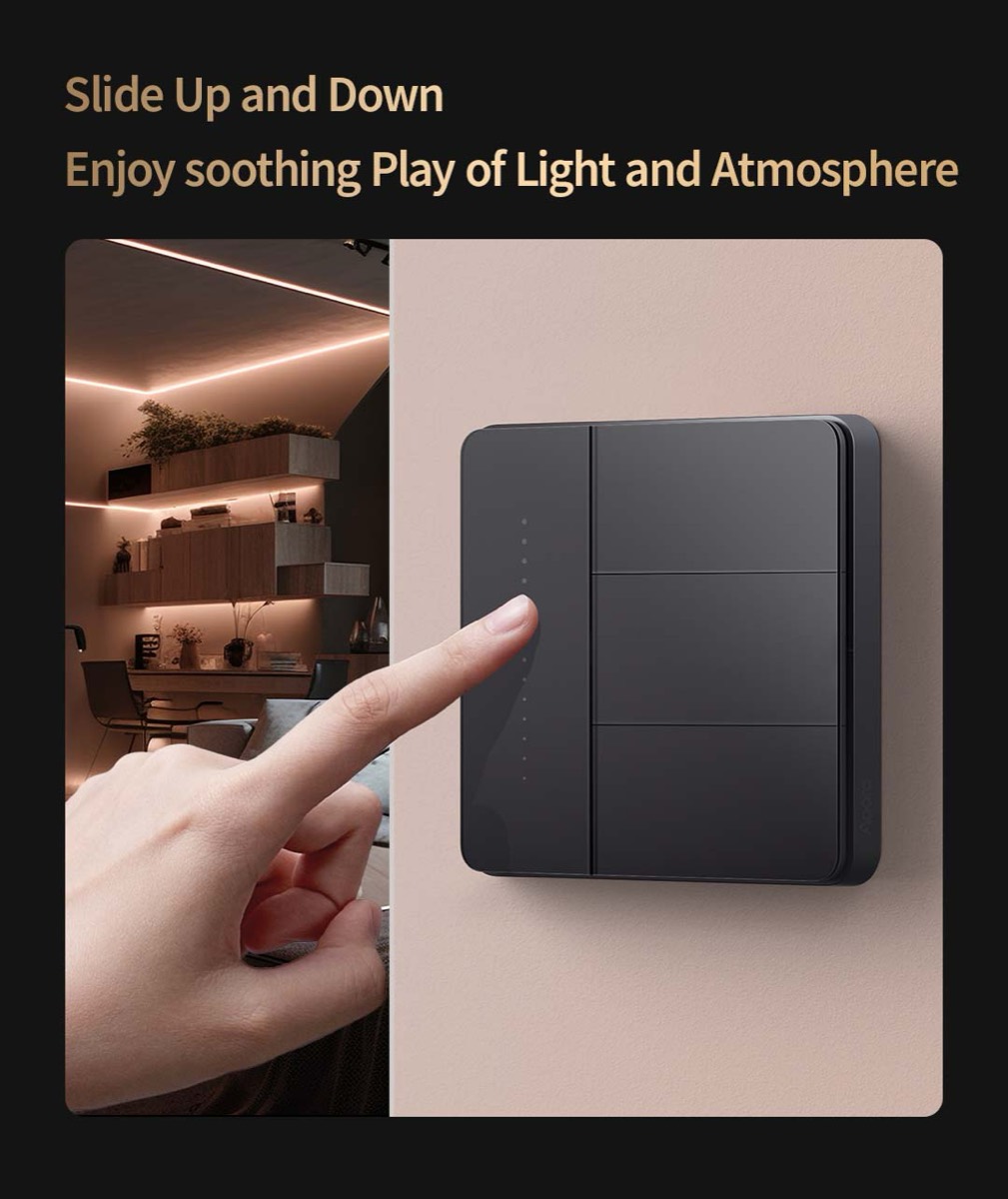

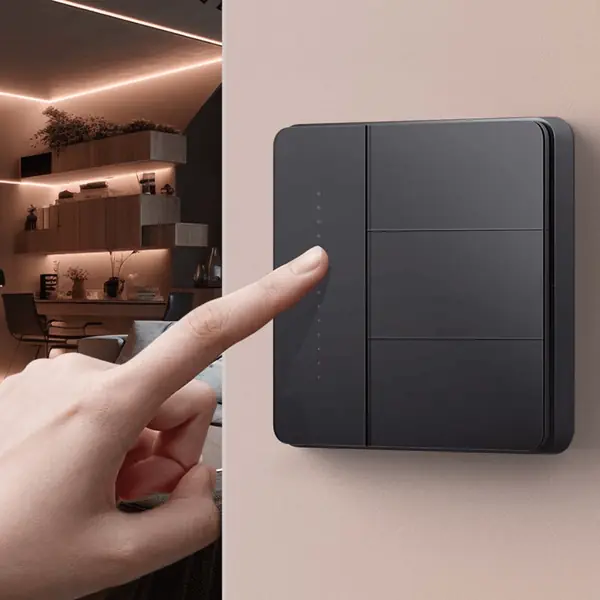

Slide to set the mood
The touch bar down the left edge turns brightness, colour and curtains into a single smooth glide — no menus, no fiddling. Every button also reads single press, double press and press-and-hold, so one panel can run lights, scenes and devices across the whole home.
- Light, colour and curtains — slide up and down for soothing dim-to-bright or to nudge the curtains to an exact position
- Three gestures per button — map single, double and long press to different devices and scenes
- Simple dual control — bind a button to any other Aqara wall switch for a synced bedside duplicate — indicator lights and all
No neutral wire? No problem.

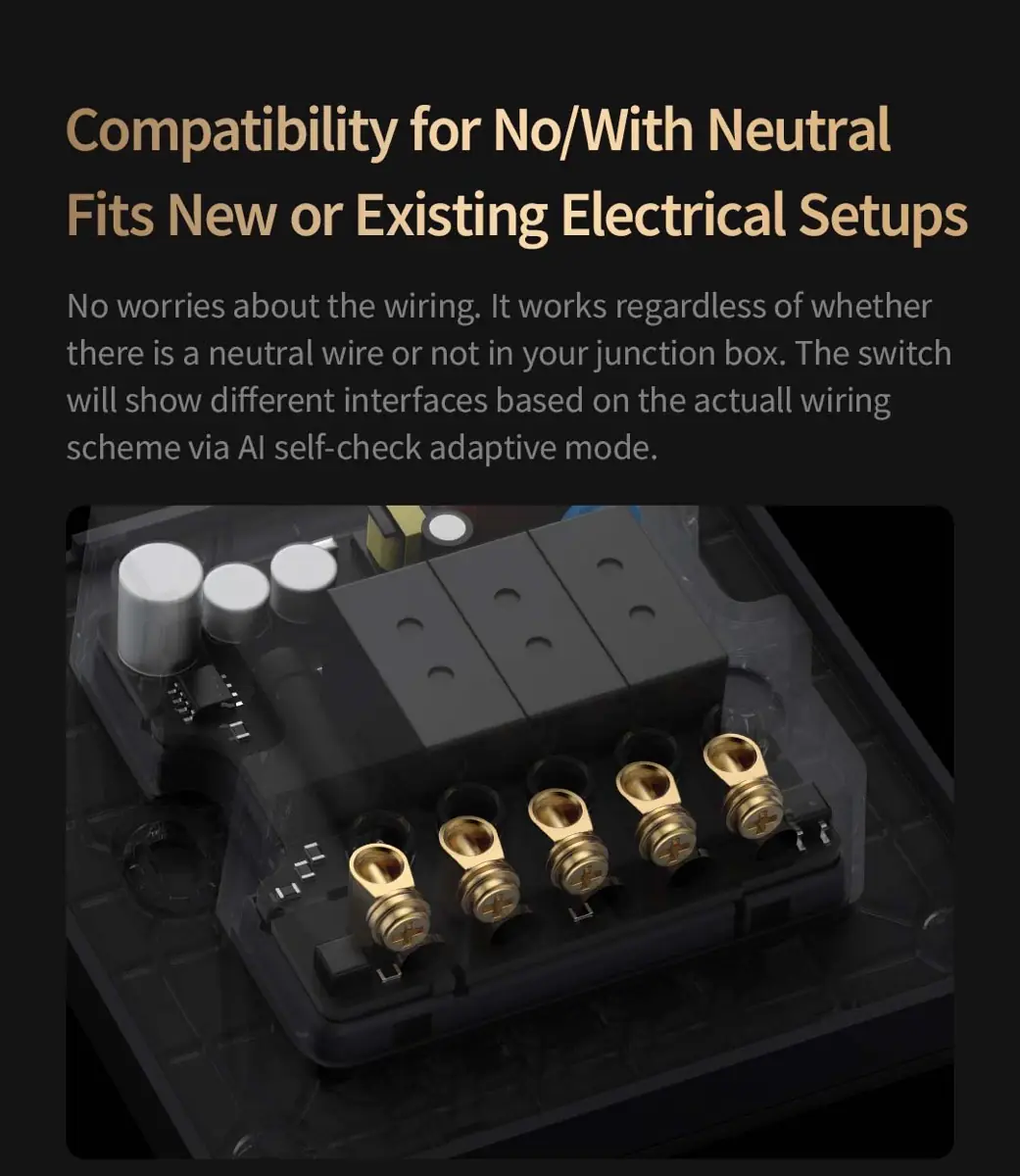

The Z1 Pro installs whether or not your junction box has a neutral wire — an AI self-check adaptive mode detects the wiring and sets up the right interface automatically. It also plays nicely with smart bulbs: Aqara's MARS-Tech keeps a smart light in sync and reachable even after you switch it off at the wall.
- No-neutral or with-neutral — works with new or existing electrical setups; 3W minimum load in no-neutral mode
- MARS-Tech smart-light support — smart bulbs stay online and in sync instead of dropping off when powered down
- Real-time power monitoring — check live and cumulative energy use from the Aqara Home app

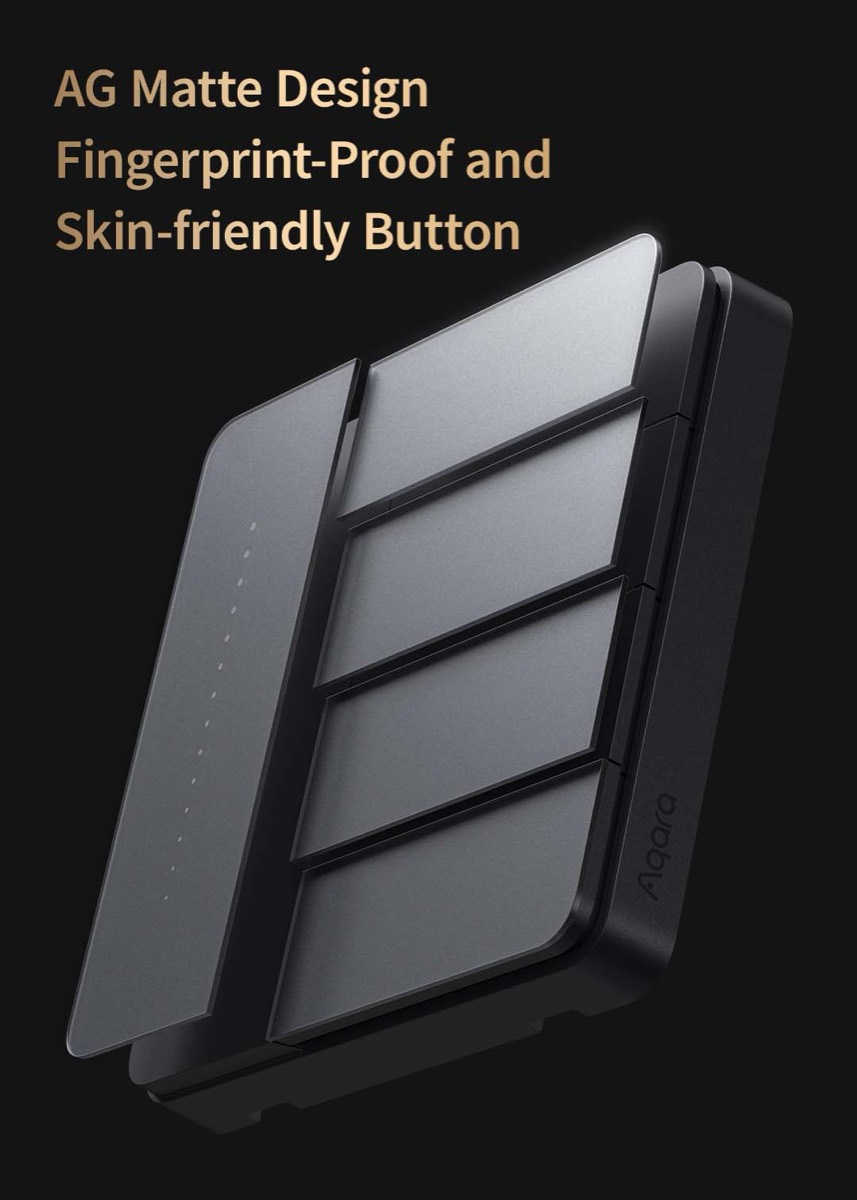

Metal frame, engineered internals
An AG matte finish stays fingerprint-proof and feels good under the thumb, wrapped in a metal frame that suits any wall. Underneath, an Aqara-customised magnetic latching relay and a built-in safety chip do the hard work quietly for years.
- Rated 100,000 presses — magnetic latching relay tested for a long service life, with strong surge resistance (TV-10, 370A)
- Safety in every detail — built-in fuse and temperature chip auto-cut power at overload or 85°C; V0 flame-retardant housing
- Gold-plated brass terminals — for a secure, low-resistance connection, plus an anti-light-pollution mode for the indicators
Tech specifications
| Model | ZNQBKG42LM / ZNQBKG43LM / ZNQBKG44LM / ZNQBKG45LM |
|---|---|
| Versions | Single / Double / Triple / Quadruple Rocker (Quadruple = 3 relay switches + 1 wireless mini switch) |
| Colour | White / Black |
| Light-control channels | 1 / 2 / 3 / 4 channels |
| Wireless protocol | Zigbee 3.0 |
| Rated parameters | 220V~ / 50Hz |
| Rated current | 16A |
| Rated load | Incandescent ≤ 2200W total · Energy-saving / LED / fluorescent ≤ 400W total |
| Minimum load | 3W (no neutral) · no limit (with neutral) |
| Surge resistance | TV-10, 370A |
| Neutral wire | Works with or without a neutral wire |
| Dimensions | 86 × 86 × 33.5 mm |
| Operating temperature | 10°C to 40°C |
| Operating humidity | 5–95% RH, non-condensing |
| Execution standard | GB/T 16915.1-2014, GB/T 16915.2-2012 |
Zigbee 3.0 connectivity requires an Aqara hub (sold separately). Sliding, dual-control, scene and power-monitoring features are configured in the Aqara Home app. Works with Apple Home requires a compatible Apple home hub; ecosystem feature support may vary. This is the SEA model, rated for Singapore's 220V/50Hz mains.
