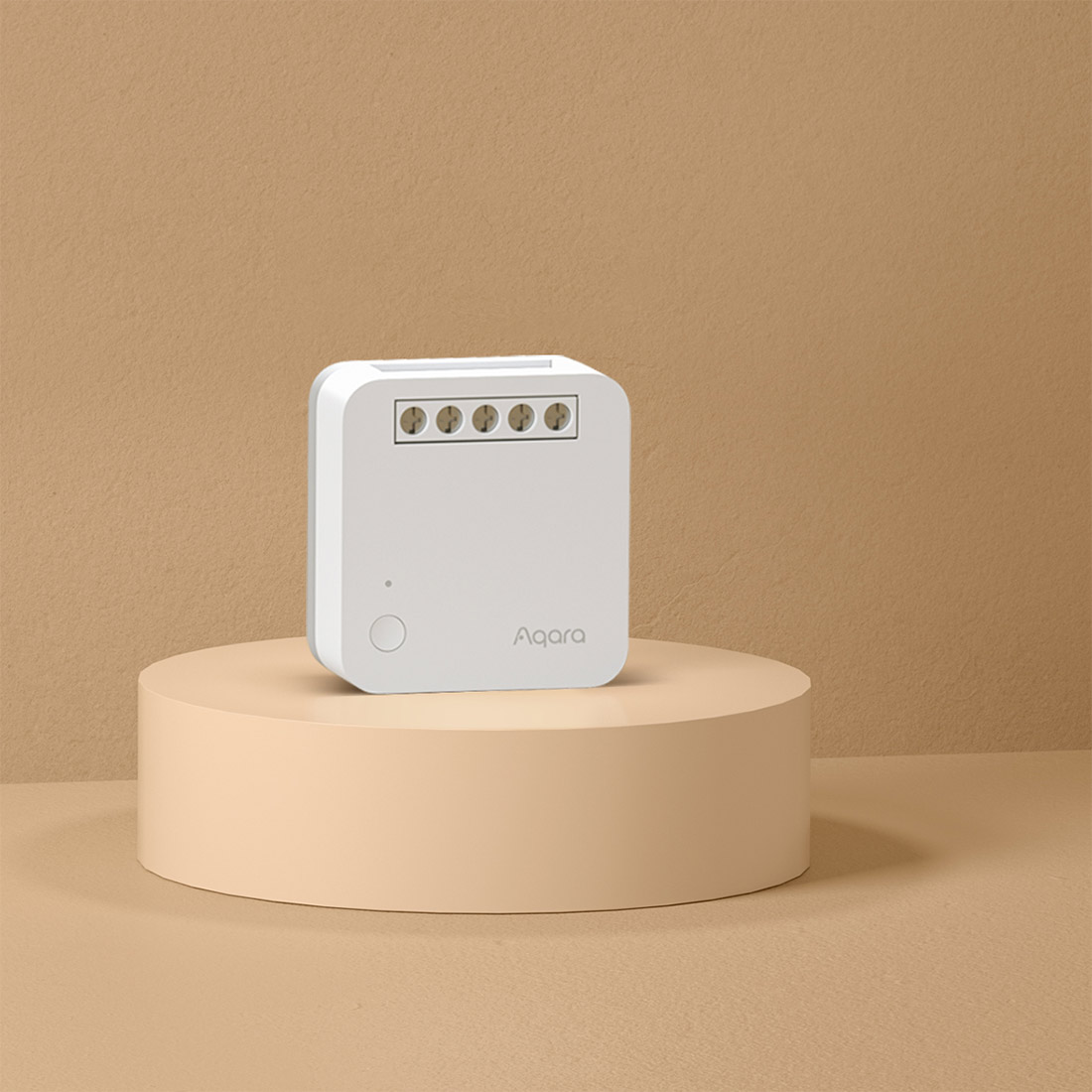

Aqara Single Switch Module T1
- Zigbee
Requires a compatible Aqara Zigbee hub.
$38.90 – $43.90
A relay control module based on Zigbee 3.0, which can be integrated into your smart home system to control the on/off status of the light, fan, and other devices.
- PayNow
- GrabPay
- Visa & Mastercard
- Official Singapore sets
- Free Singapore delivery
- Local warranty
- GST-inclusive prices
Category: Smart Switches
Make the switch you already have smart.
A single-channel Zigbee 3.0 relay that hides behind your existing wall switch or outlet — control lights, ceiling fans, and appliances from your phone or a scene.
- Max load (resistive)
- 2500WMax load (resistive)
- Max current
- 10AMax current
- Certified
- Zigbee 3.0Certified
- Fits any wall box
- 42.9 mmFits any wall box
- Switch support
- 2-waySwitch support
Requires an Aqara Zigbee hub (Camera Hub G2H and above) for full functionality.

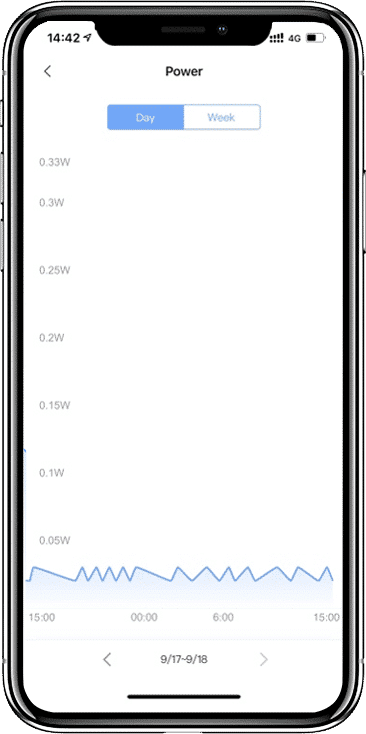

See exactly what your appliances draw
The module tracks real-time consumption for whatever it controls, with daily and weekly usage reports in the Aqara Home app — so you can spot the power-hungry loads and build automations around them.
- Usage reports — check consumption by day or week to track how efficiently each appliance runs
- Automate on power — trigger scenes off consumption thresholds — flag an idle iron or a socket left on
Control it your way
Set timers and schedules, check status, and switch loads on or off from anywhere. Pair it with Aqara motion or door sensors and the lights just handle themselves — no reaching for the switch.
- Voice control — works with the major voice assistants and smart home ecosystems through your Aqara hub
- Sensor automations — connect Aqara sensors so lights and fans respond to movement, contact, and scenes

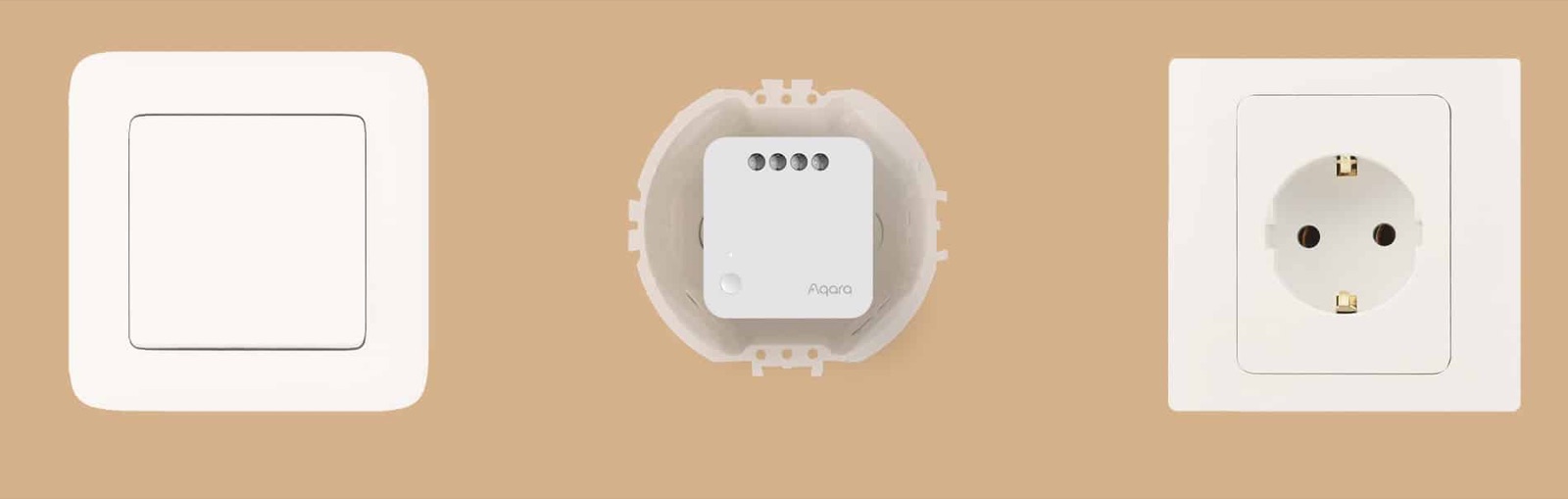

Small module, no rewiring your habits
At 42.9 mm it tucks into almost any wall box behind a switch or outlet, and keeps the physical switch working as normal.
2-way switch ready
Wire it into your existing 2-way (staircase) switches to make them smart without changing the wall plate.
Power-off memory
Choose whether connected lights come back on automatically after a power outage.
Overheat & overload protection
Built-in safeguards cut the load if it runs too hot or draws too much current.
Tech specifications
| Model | SSM-U01 (With Neutral) |
|---|---|
| Input power | 100–250V AC, 50/60Hz |
| Max current | 10A (resistive load) |
| Rated load | Min 3W, Max 2500W (resistive load) |
| Wireless | Zigbee 3.0 (IEEE 802.15.4), 2.4GHz (2400–2483.5MHz) |
| Receiver sensitivity | -102 dBm |
| Range | 30 m (indoors) |
| Dimensions | 42.9 × 40 × 19.9 mm |
| Operating temperature | 0°C to 35°C |
| Operating humidity | 5–95% RH, non-condensing |
| Storage temperature | -10°C to 50°C |
| In the box | Single Switch Module T1 × 1, Quick Start Guide × 1 |

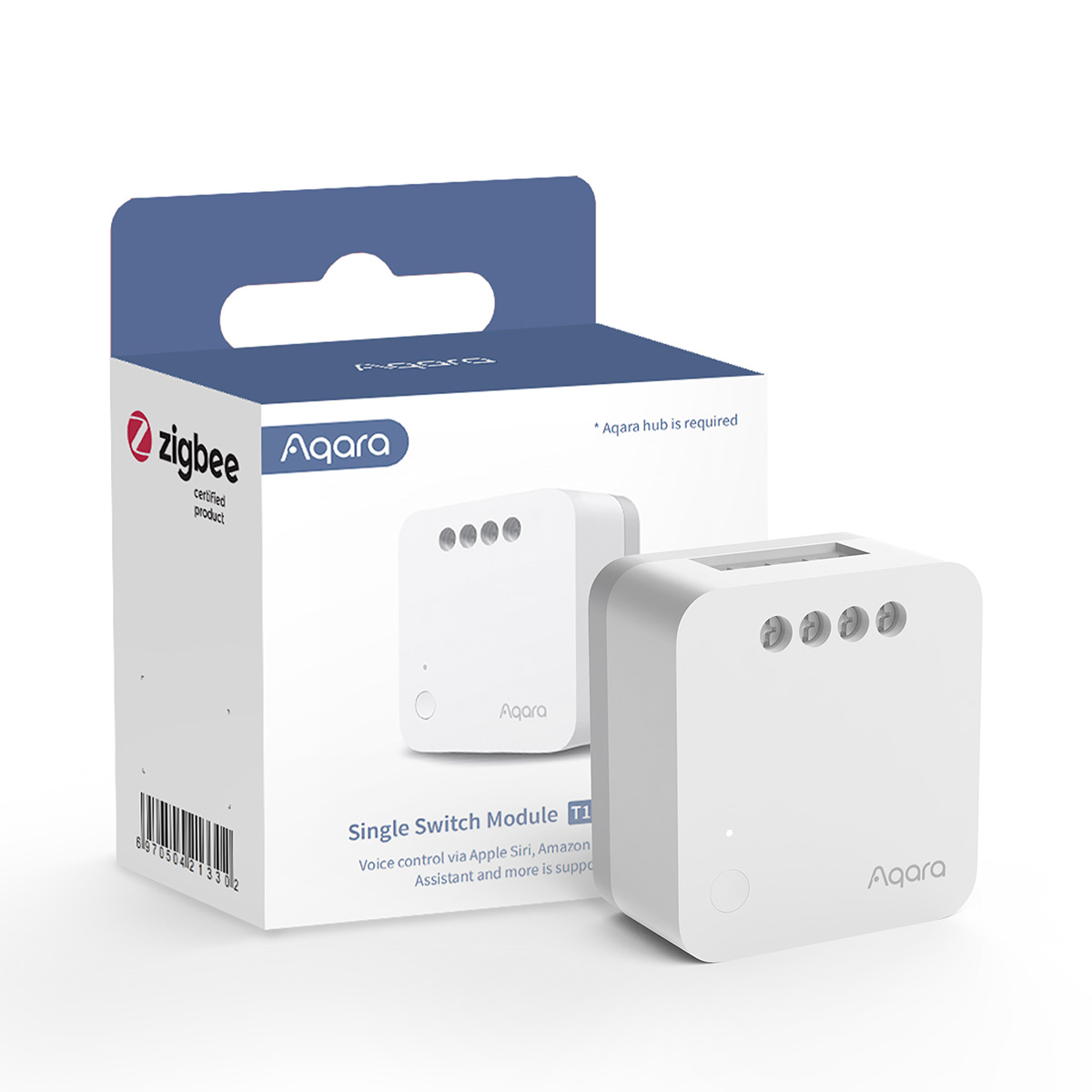

Specs shown are for the With Neutral variant (SSM-U01). A No Neutral variant (SSM-U02) is also sold — please confirm which version this SG listing ships and its exact load rating before install. Requires an Aqara Zigbee hub; not a standalone device.
