Smart Home Planning for a Singapore Renovation

Write down what should happen when someone arrives, leaves, watches television, goes to sleep or wakes up. Then identify the lights, curtains, air-conditioning, locks and sensors involved in each routine.

This separates useful functions from novelty. It also reveals where one well-placed sensor or scene switch can coordinate several products.

For every routine, state who initiates it, the rooms involved and what the manual fallback is. ‘Good Night’ is not a specification until it says which lights turn off, which curtains close, whether air-conditioning changes, what happens to late occupants and where the scene can be cancelled.

Switch compatibility depends on the exact product, load and wiring. Share the product schedule with the electrician before installation rather than assuming every smart switch fits every existing point.

Record each controlled circuit and its load type: dimmable driver, non-dimmable LED driver, fan, motor or another appliance. Smart switches and dimmers have minimum and maximum loads as well as restrictions on compatible load types. A light that works from a conventional switch can still flicker, glow while off or fail to dim smoothly with an unsuitable electronic control.

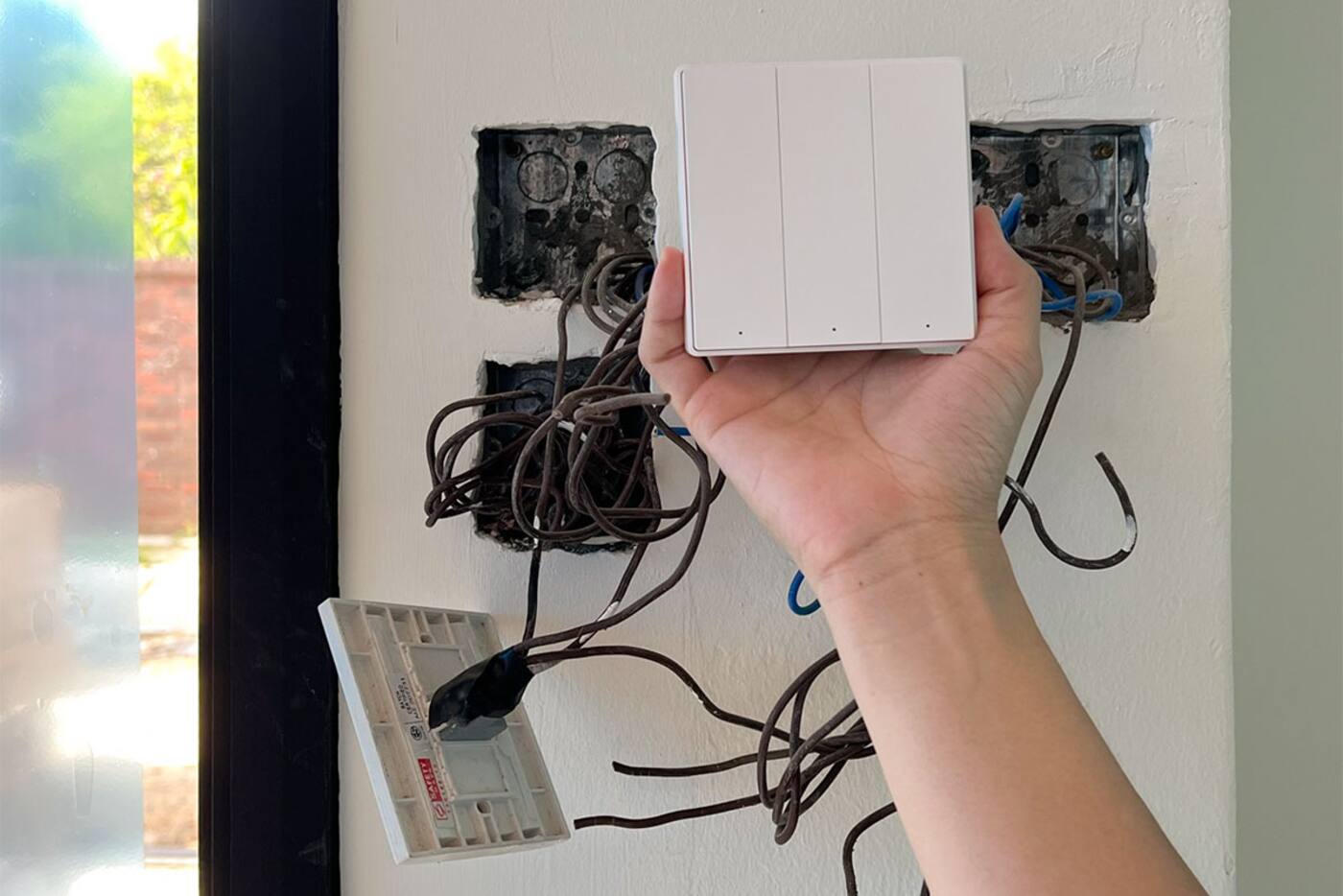

Neutral availability is only one constraint. Deep smart controls, connectors and looped wiring need usable box volume. Multi-gang points can become crowded, especially in shallow masonry boxes. Confirm the finished wall build-up and test-fit representative hardware before tiling or panelling makes correction difficult.

• Check whether the selected wall switches require a neutral wire.
• Confirm back-box depth and physical space for each switch or controller.
• Provide permanent power and accessible isolation for curtain motors.
• Plan power and data for hubs, cameras, doorbells and network equipment.
• Keep essential circuits usable from physical controls.

Create one schedule with a row for every room and fixed device. The interior designer, electrician, curtain supplier, network contractor and smart home team should work from the same revision. Product names alone are not enough; the schedule must state the supply, cable route, box, mounting position, controlled load and service access.

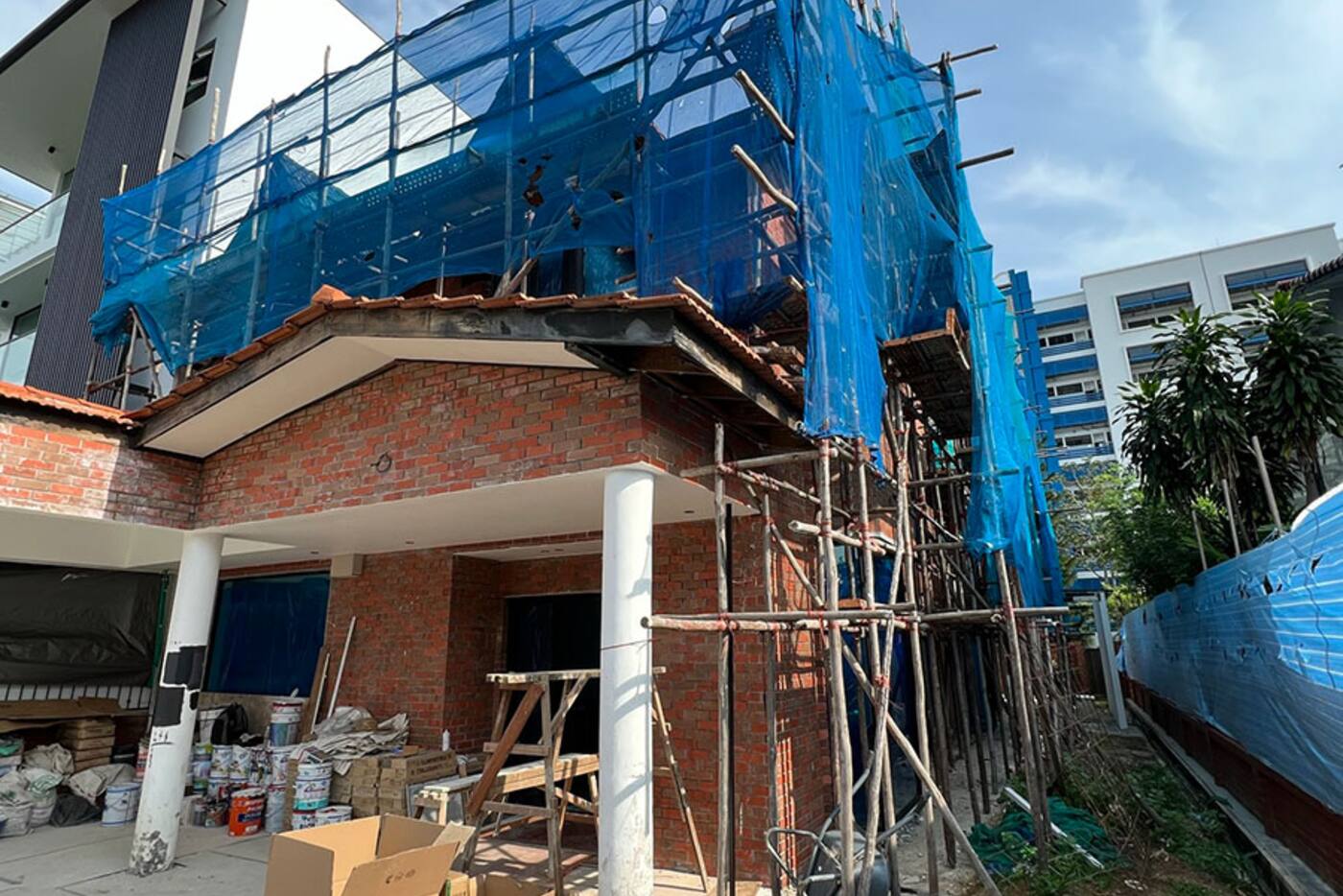

Mark every decision that becomes expensive after finishes: neutral conductors and box depth at switches, curtain motor side and accessible power, doorbell transformer or network route, camera field of view and recording location, hub power and data, and access-point positions. Attach the exact model drawing where dimensions affect carpentry or metalwork.

The schedule also needs reviewing against reflected ceiling plans, elevations, carpentry drawings and the door or window hardware: a point shown on an electrical plan can still be unusable if a pelmet, mirror, cabinet door or gate blocks the finished device.

A smart wall switch controls the circuit and preserves the familiar habit of pressing a switch. It suits fixed lighting where simple on/off or compatible dimming is enough. A smart lamp or smart luminaire can provide individual brightness and colour-temperature control, but it normally needs permanent power; cutting power at a conventional switch takes it off the network.

The two approaches can be combined when the control system is designed for it, but they should not fight one another. Decide whether the wall control switches mains power, sends a wireless command, or uses a decoupled mode supported by the selected product, and label that decision on the electrical schedule.

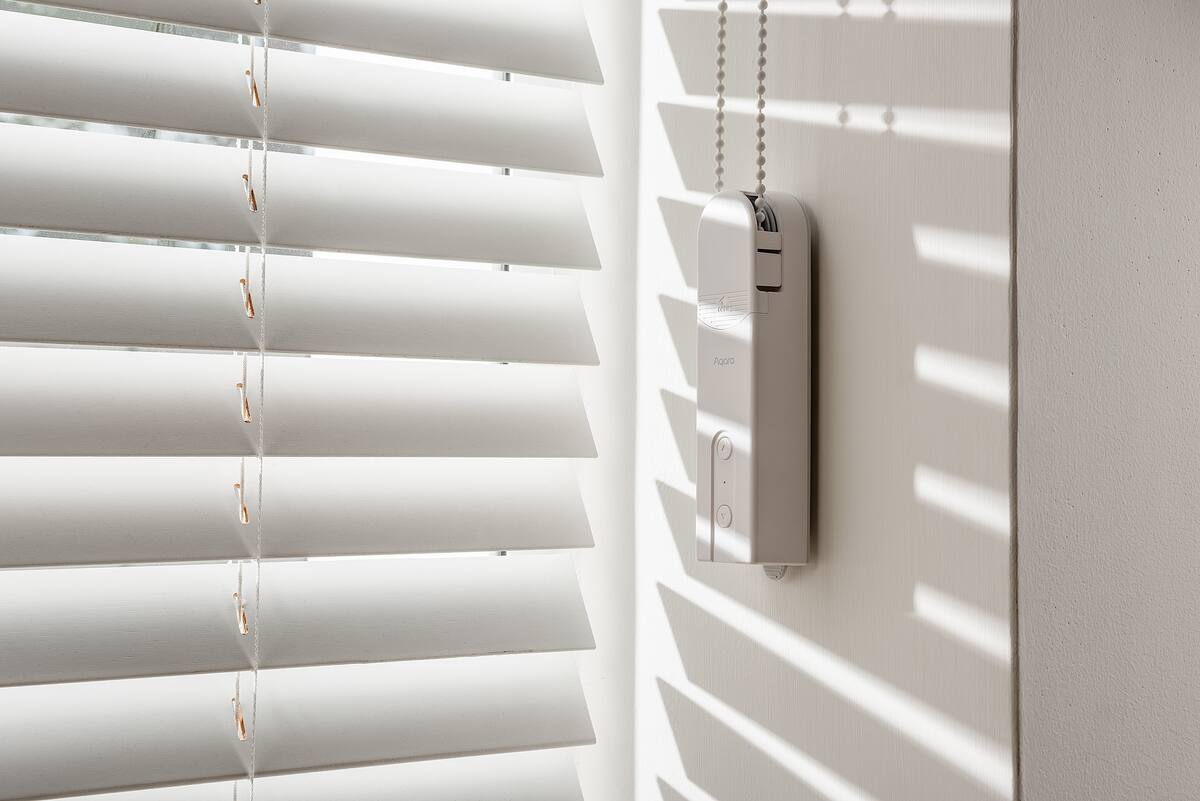

Motorised curtain tracks affect track length, stack-back space, pelmet dimensions, power location and the direction in which curtains open. Roller blinds and other shades have their own tube, bracket and power requirements.

Coordinate the curtain supplier and smart home team before measurements are locked. A motor cannot compensate for a track or pelmet that was designed without it.

For day and night curtains, document whether both layers are motorised and whether they open from the centre or stack to one side. The motor, connector and isolation point all need service access; a beautifully closed pelmet that requires destructive work for servicing is not a finished design.

The router, access points and hubs need positions with coverage and service access; a metal enclosure or inaccessible carpentry removes both. Test the final locations before handover, especially at the main door, service yard and far bedrooms.

Where possible, run Ethernet to fixed hubs, access points, televisions, desks and camera locations before ceilings close. Ethernet does not replace a Zigbee or Thread radio plan, but it reduces Wi-Fi contention and gives stationary infrastructure a predictable connection. Reserve power points and ventilation for the router, network switch and any backup power supply.

Use a consistent naming convention before pairing: room, function and position are usually enough. Confirm switch direction, motor limits, sensor orientation and manual control in each room before building whole-home scenes. A fault is easier to isolate while the room is still independent.

Then test cross-room routines in normal conditions: doors closed, curtains installed, Wi-Fi under normal load and family members moving through the home. Include power restoration. Some lights or motors may resume a previous state after an outage; others may have a configurable power-loss behaviour.

The handover should record device names, room assignments, scenes, automations, account ownership and recovery details. The homeowner—not an installer’s personal account—should control the finished system.

Provide the final circuit and device schedule, hub locations, network dependencies, warranty records and instructions for adding a household member, and export or photograph important configuration where the platform allows it. Temporary installer access should end at handover, and the recovery email addresses and phone numbers should belong to the owner.
