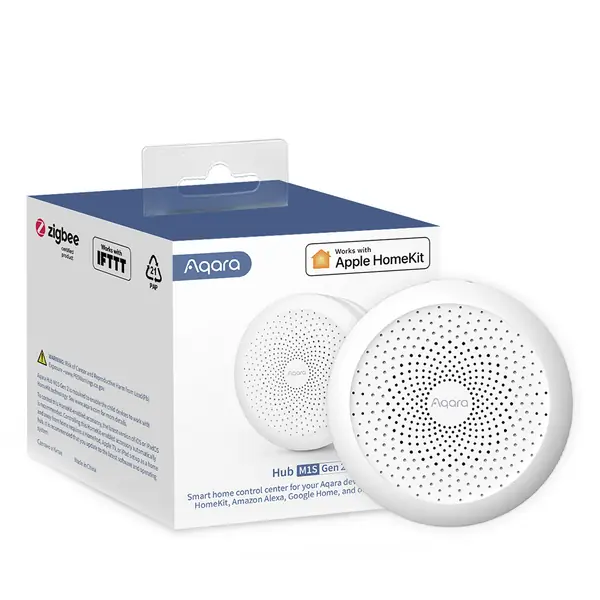

Aqara Hub M1S Gen 2

Description

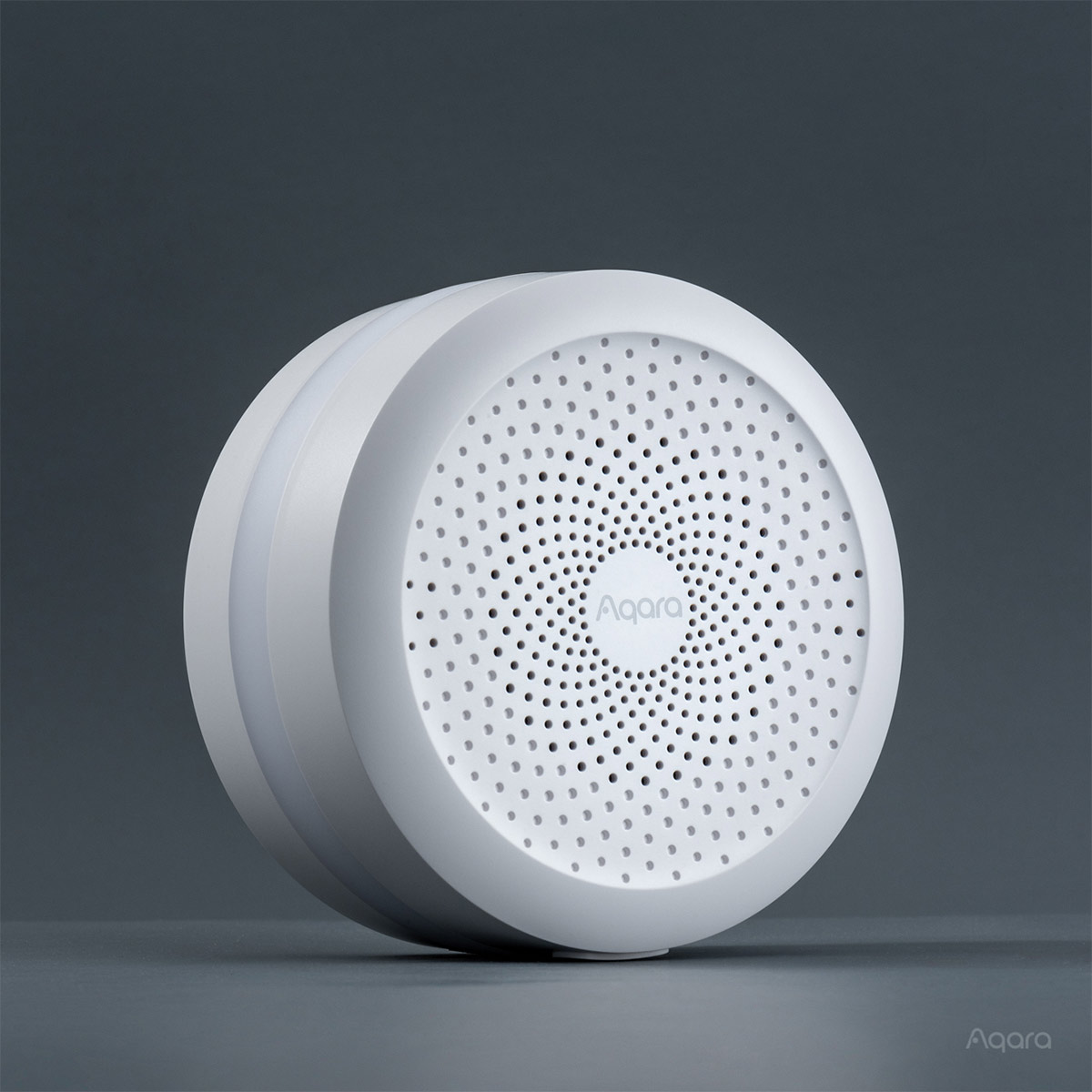

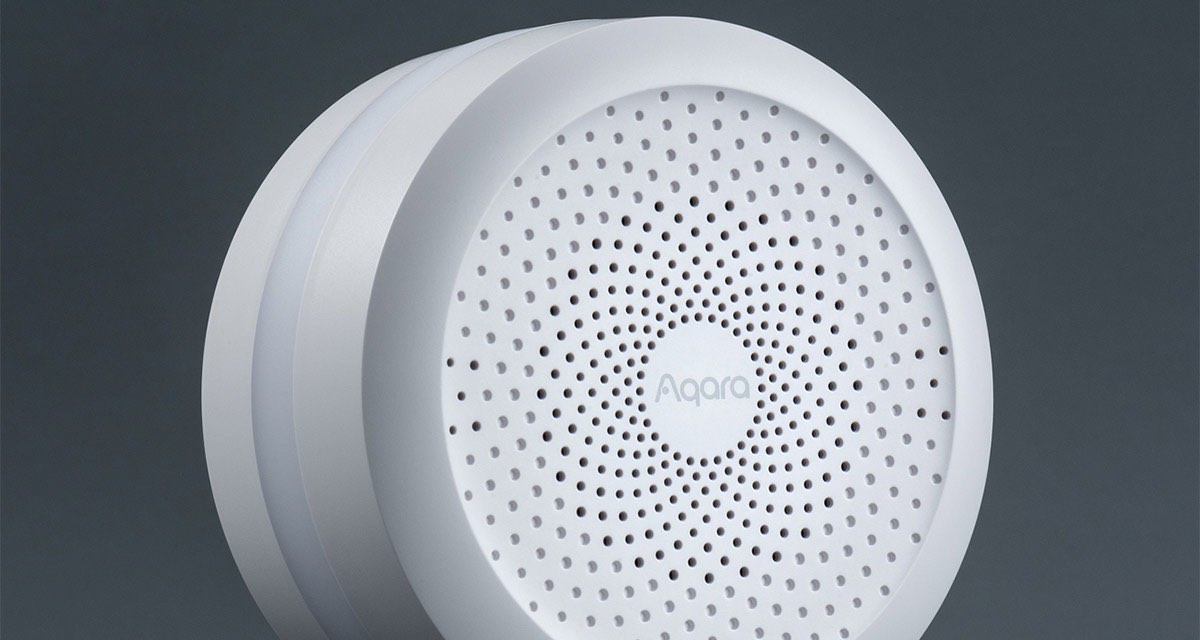

Aqara Hub M1S Gen 2 is a smart home control center, which connects Zigbee devices to Wi-Fi networks. It also features a ring of RGB LEDs which can be used as a night light, or as a visual notification. Its speakers allows it for use for audio notifications such as alarms or doorbells.

• Zigbee 3.0 support, up to 128 devices*: Supports all the latest Aqara devices based on the fastest, most stable, and energy-efficient technology.
• Built-in Speaker: A powerful 2-watt speaker can be used as an alarm or doorbell as well as via configurable automations.

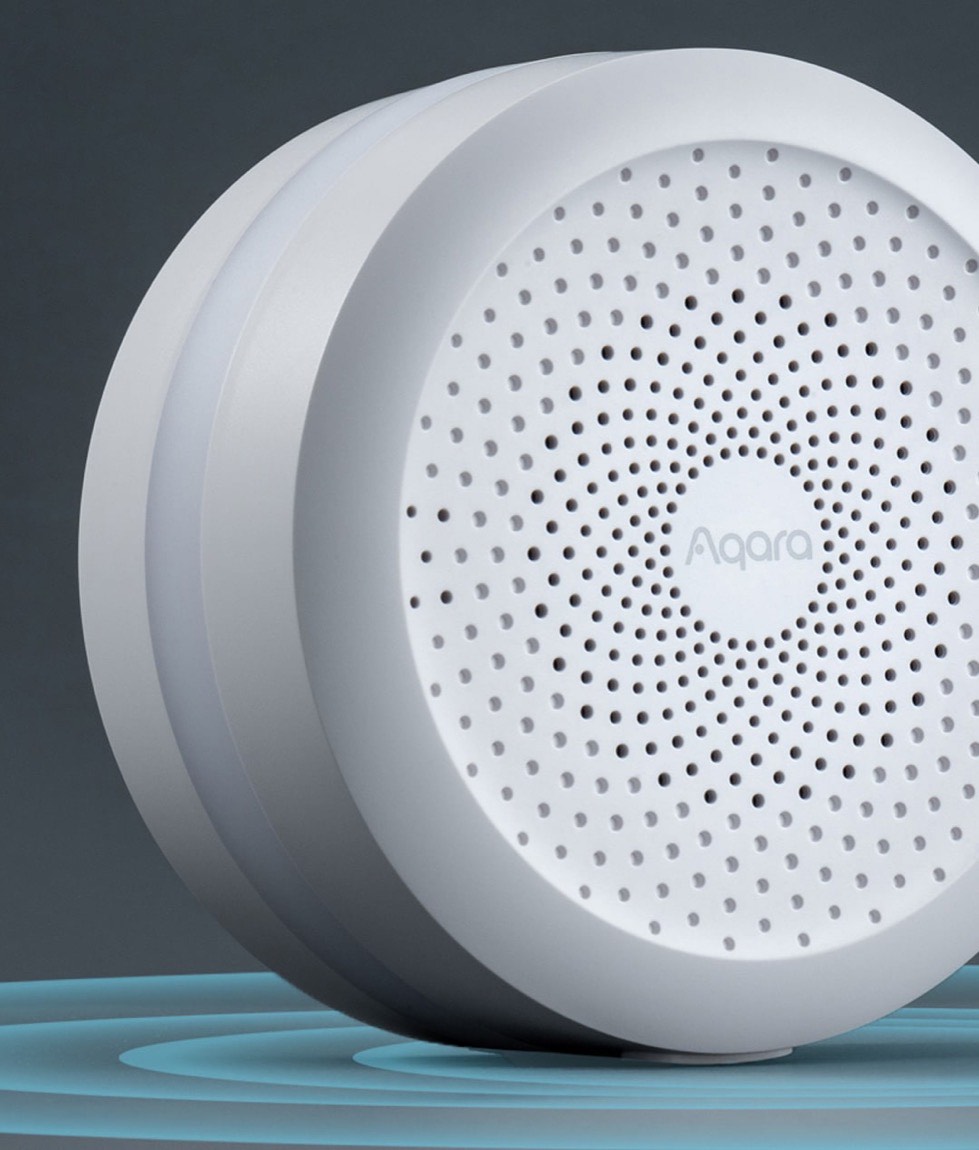

• RGB Light and Illumination Sensor: Apart from being a Zigbee 3.0 smart home hub, the M1S Gen 2 has a built-in RGB light made of 18 powerful LEDs and a diffuser. It can be used as an alarm, accent, or night light and has a configurable brightness and color. Moreover, compared to our previous hubs, it has a fully functional illumination sensor that can be used in automations via the Aqara Home app.
• All-Round Compatibility: Use your favorite voice assistant** or smart home ecosystem together with Aqara Home app automations.

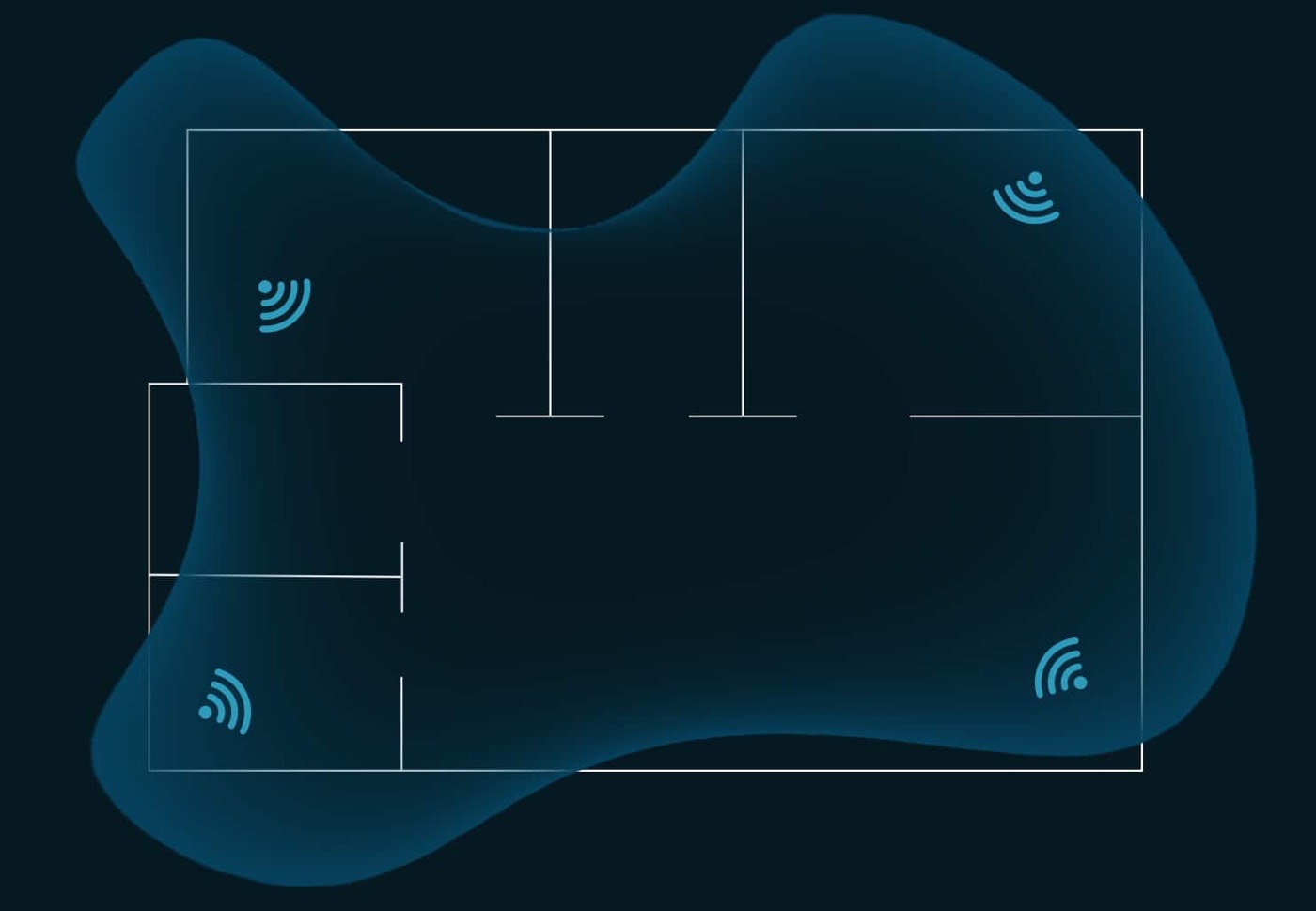

• Enhanced Wi-Fi Connectivity: The M1S Gen 2 has a more powerful 2×2 MIMO Wi-Fi antenna and WPA3 standard support which makes the connection faster, secure and reliable.
• Focus on Security: Apart from Aqara Alert System, the M1S Gen 2 supports all 4 HomeKit alarm modes.

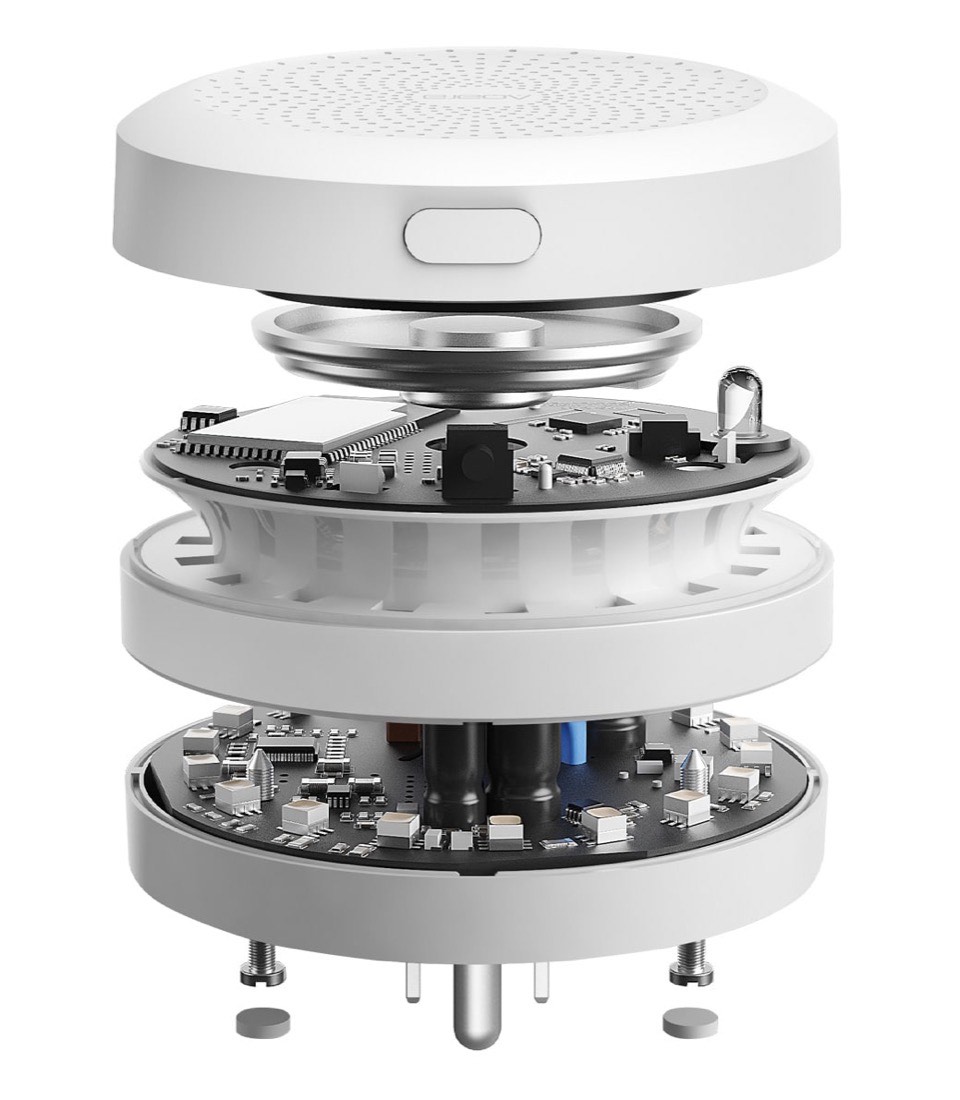

• High-quality Components and Design: High-quality components and design are not only a subtle addition to any room interior but also make the M1S Gen 2 more reliable by achieving constant airflow through its large perforated base.
• Configurable Ringtones: M1S Gen 2 now supports user-defined MP3 ringtones that can be uploaded for voice announcements and be used in automations. For example, the hub will say “Good night” when the corresponding scene is triggered.

*Up to 128 Aqara Zigbee child devices can be connected to the hub (repeater devices such as Smart Plug and Wall Switch (with Neutral) are required).

**Apple Siri, Amazon Alexa, Google Assistant, and more are supported.

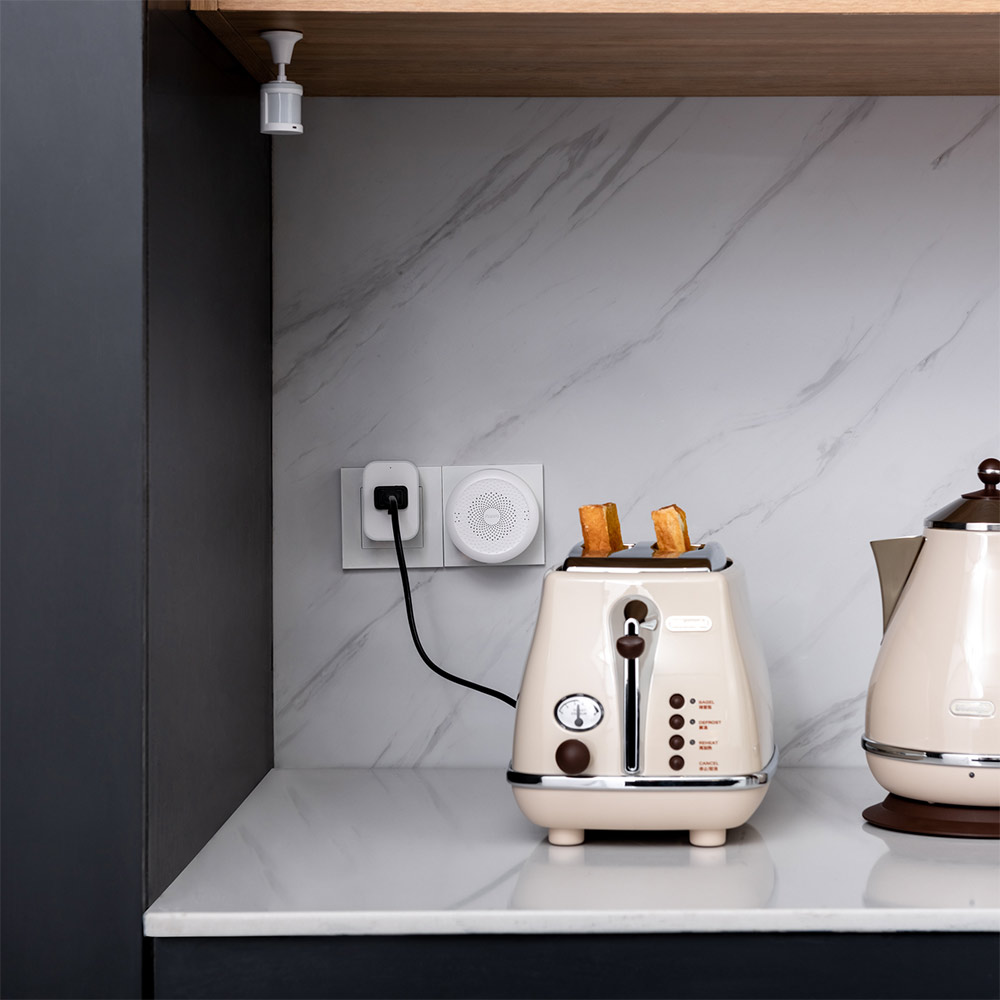

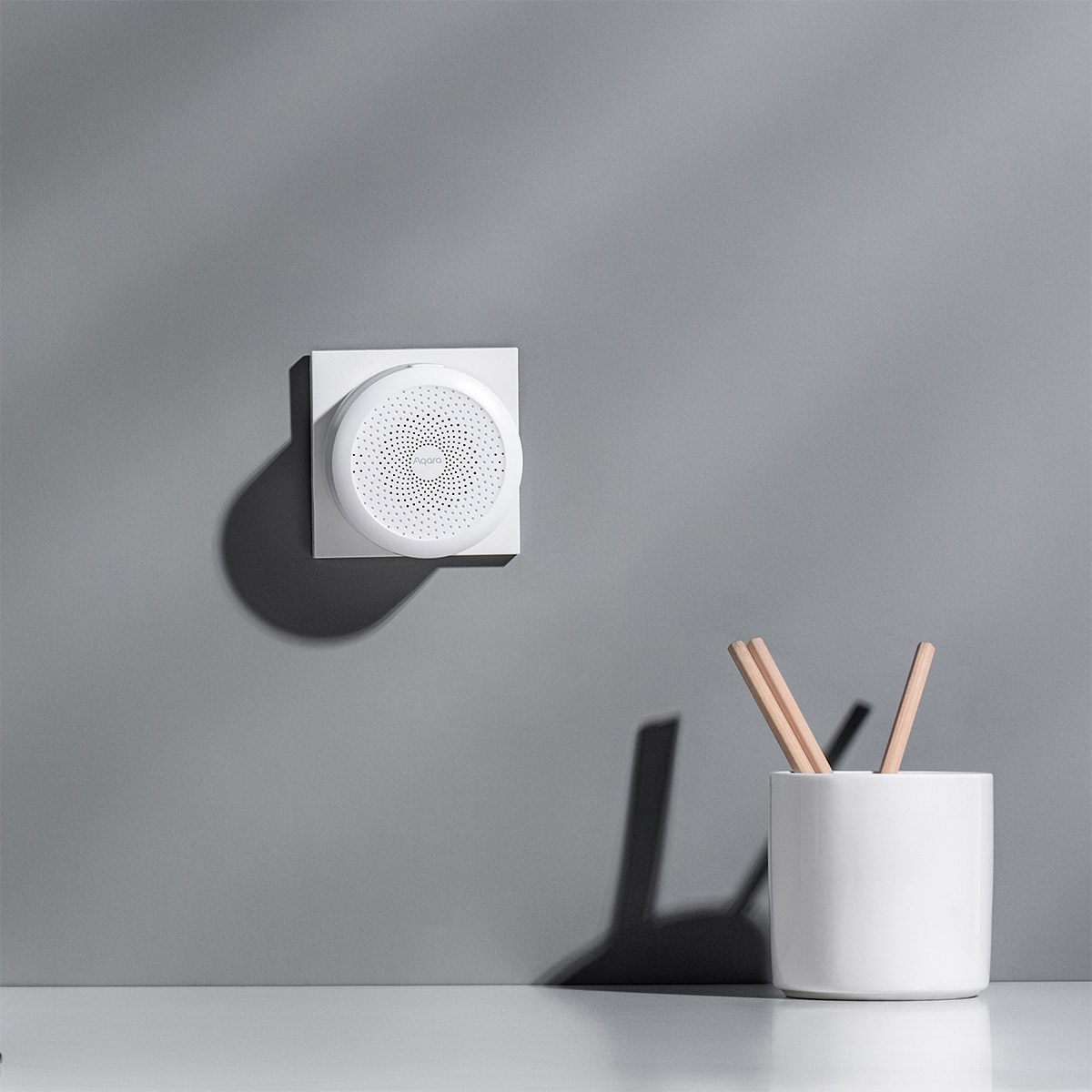

Note: The Aqara M1S has an EU 2-pin plug and will require an adapter to be plugged into the typical 3-pin power outlet.

Specifications

Model: HM1S-G02

Dimensions: 80×80×41.5 mm (3.15×3.15×1.63 in.)
Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Zigbee
Input: 100-240V~, 50/60Hz, 0.2A 120V~, 60Hz, 0.2A For North America 
Operating Temperature: -10°C ~ +40°C (14°F ~ 104°F)
Operating Humidity: 0% ~ 95% RH, no condensation
Wi-Fi Operation Frequency: 2412-2472 MHz
Wi-Fi Maximum Output Power: 20 dBm
Zigbee Operation Frequency: 2405-2475 MHz
Zigbee Maximum Output Power: 13 dBm
* Maximum Transmit Power and Working Frequency for EU only.
What’s in the Box: Aqara Hub M1S Gen 2, Quick Start Guide
