Aqara Smart Door Lock U100 Kit

Description

Aqara U100 not only provides rich unlocking methods based on various usage scenarios and habits of users, including Apple Home and Home Key, as well as fingerprints, keyboards, and other unlocking methods, but also considers the security of customers, passing the same security standards as BHMA Level 3. Automatic lock and always open setting mode, let the U100 understand your usage habits better. The simple and elegant design is compatible with different kinds of decor styles. It also has an emergency solution for unlocking, a battery life of up to 8 months, and an IP65 waterproof rating. U100 meets users’ various needs for lock security and unlocking, and innovatively proposes a solution for door lock triggering other smart home devices, so that unlock your smart home with U100.

Not suitable for use on metal gates.

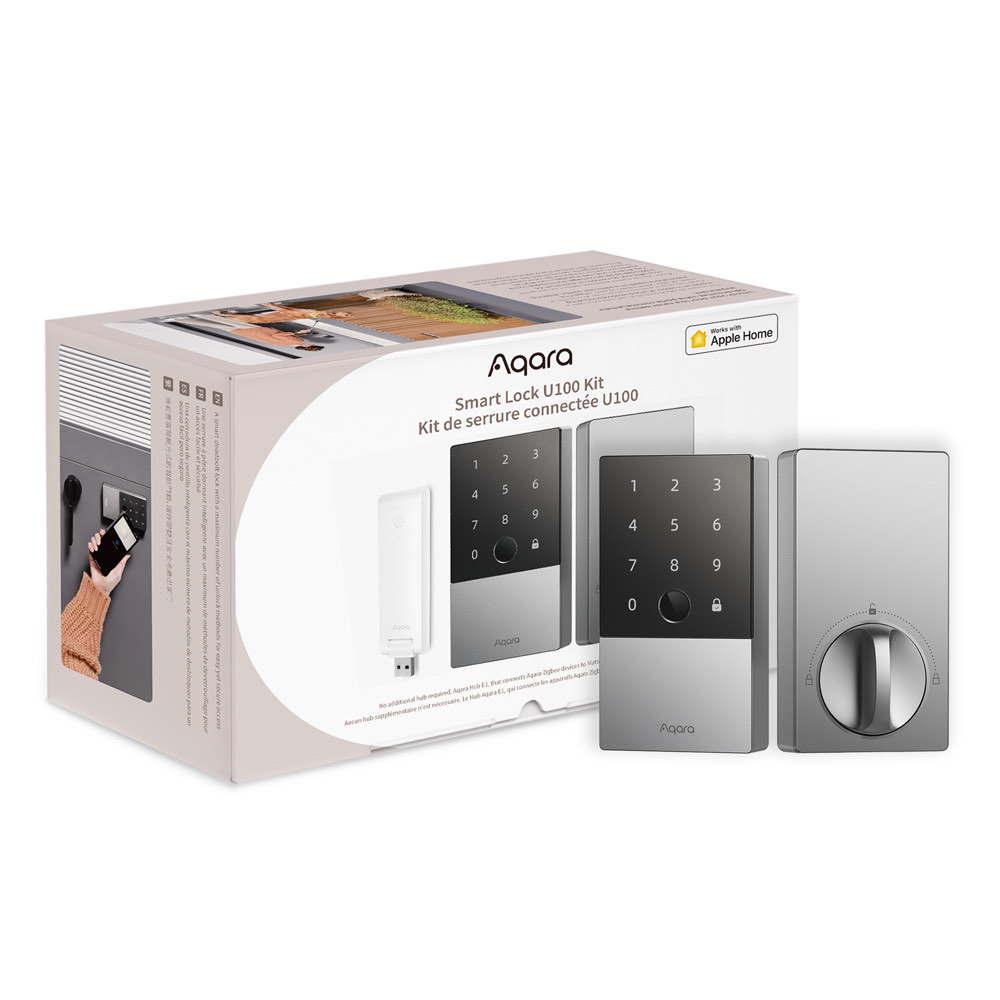

Kit contains:
1x Aqara Smart Door Lock U100 (front panel, back panel, deadbolt)
Related installation fixtures and accessories
1x Aqara Hub E1
2x Aqara NFC cards

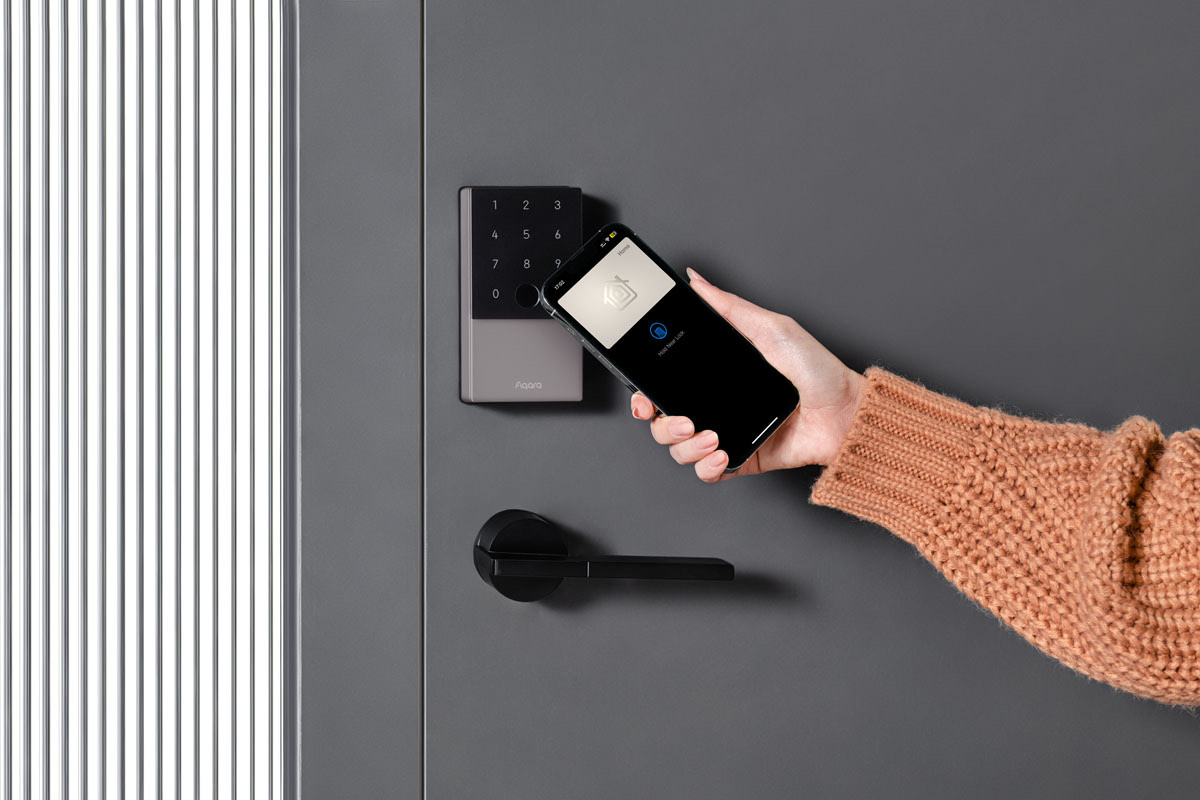

• Apple Home and Home Key Support: With a touch of the Apple Home App or Apple Watch, the door can be opened immediately and conveniently. No need for cumbersome keys and other redundant actions.
• Built-In Fingerprint Reader and Keypad: Opening doors is now even easier. Just press your fingerprint lightly, or use the keyboard to enter the password, and the door can be opened within 0.5 seconds, with an accuracy rate of 98.6%. No keys and no cell phone required. At the same time, the finger pressing surface is made of frosted matte material, so there is no need to worry about the password being peeped or stolen. You can also generate periodic passwords* to share with temporary visitors, so you don’t have to run home to open the door or hide keys.
• Auto Lock and Door Status Sensing**: Thanks to the built-in gyroscope inside the lock for door detection, the U100 can track its state, and can sense the status of the door, which allows it to remind you in case of forgetting to close the door, and even lock the door automatically after you close it.
• Automations with Aqara and Third-Party Devices: With an Aqara Zigbee 3.0 hub, the U100 is compatible with third-party ecosystems like Google Home, Alexa, IFTTT**** as well as Aqara Home app, allowing it to be easily integrated into a wide range of smart home setups and used in smart home automations. For example, when someone presses the Aqara video doorbell G4, you will be able to view who is on your porch and easily unlock the U100 in case it is needed.

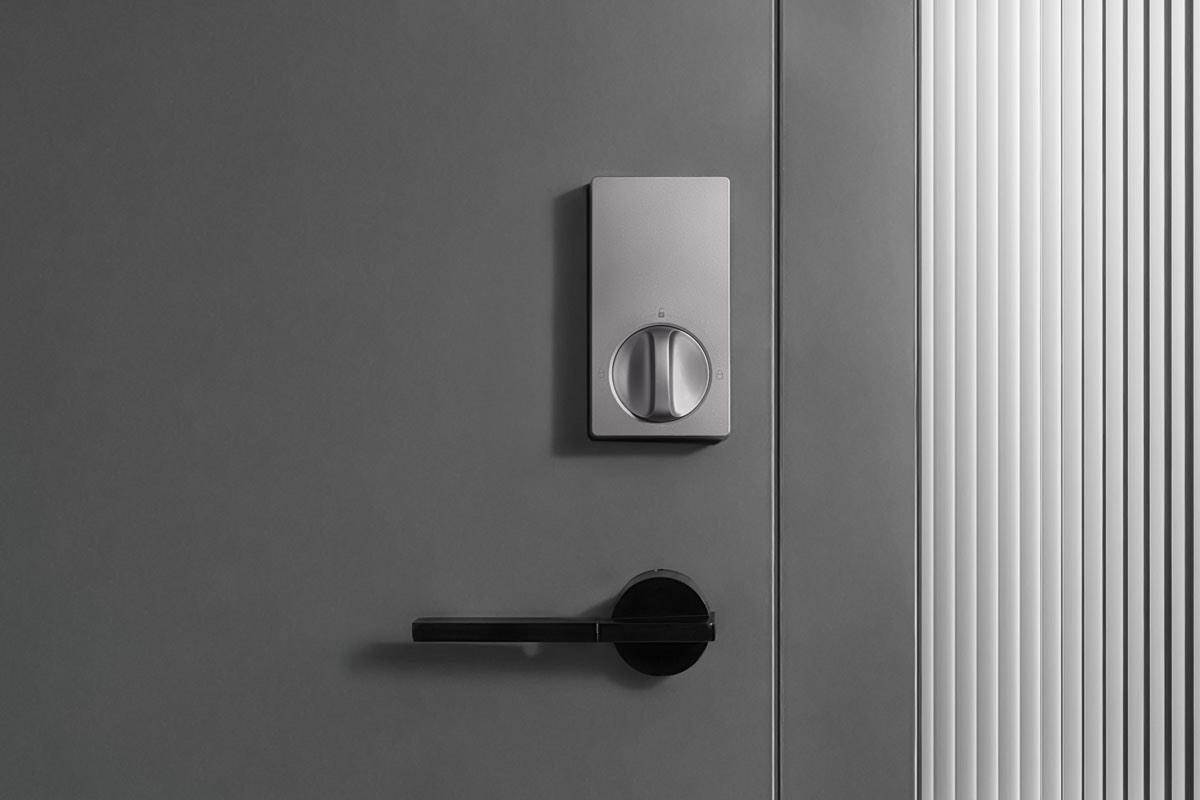

• Focus on Security and Durability: The U100 still places security as a top priority with a solid catalpa alloy shell and safe lock body structure. The keyboard is designed with a matte texture and backlight for anti-peeping, and can use random password + correct password, making your password unlocking method more secure and effective.
• Additional and Emergency Unlock Methods: While U100 provides intelligent unlocking methods, it still provides solutions for users’ emergencies. If the battery is exhausted, you can connect the USB-C externally for temporary power unlocking. And, use a mechanical key for traditional unlocking. When the smart door lock encounters a sudden emergency, there is no need to panic anymore.

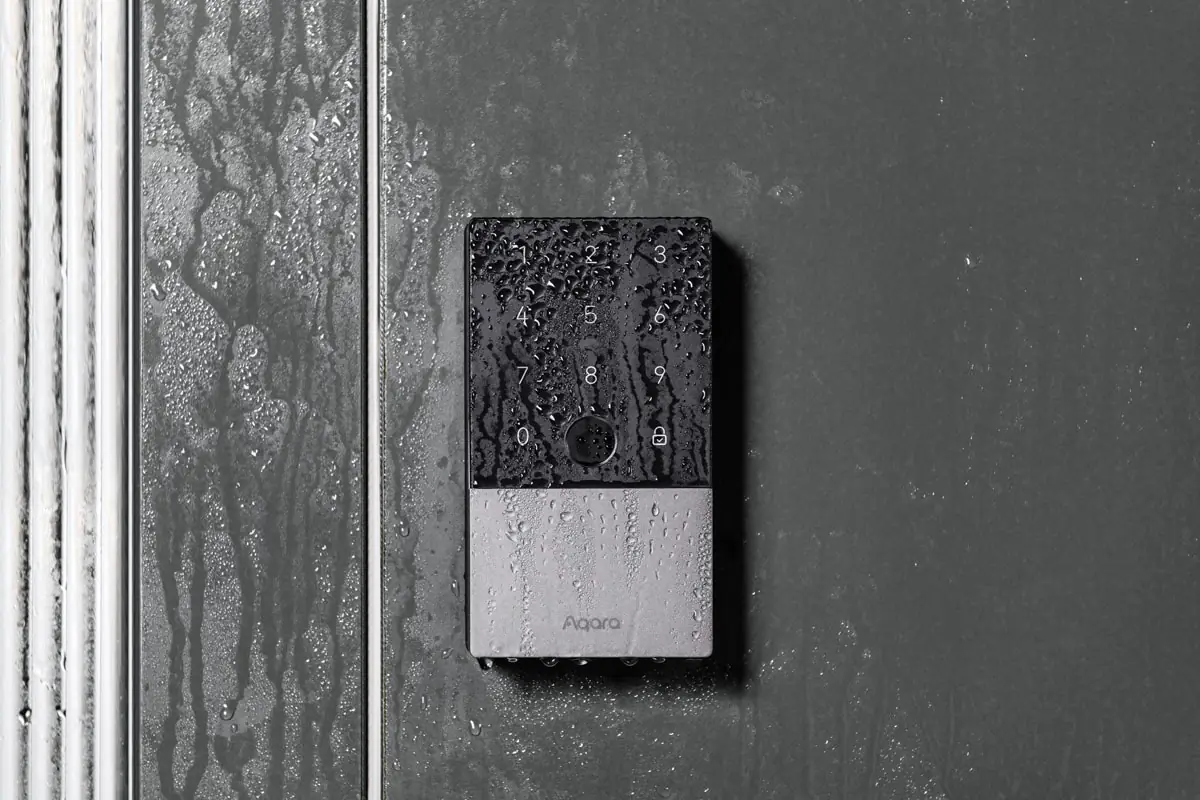

• Up to 8-month Battery Life & IP65 Waterproof: Thanks to the energy-efficient Zigbee protocol, the U100 has a long battery life, lasting up to 8 months***. Once the lock is discharged, you will be notified, and its AA batteries can be easily replaced. Moreover, it has an IP65 waterproof rating, and the applicable ambient temperature in outer panel is – 35 °C~66 °C.

* Aqara Zigbee 3.0 hub is required.
**Completed door status sensing will be ready by the end of Q3, 2023 in Aqara app.
***Calculated by opening the door 8 times a day, the battery life is 8 months.
****IFTTT will support in H2 of 2023.

Specifications

Product Name	Smart Lock U100 Kit
Model	DL-D01D
Color	Silver
Inner Panel	5.51 × 3 × 1.14 in. (140.2 × 76.2 × 29 mm)
Outer Panel	5.28 × 2.88 × 3.2 in. (134.2 × 73.2 × 81.4 mm)
Voice Language	Chinese, English, French, Spanish (Default: English)
Battery	4 AA batteries (8 daily unlocks and auto-locks, > 8 months)
Emergency Power Supply	Type C external power supply, 5V DC
Electrostatic Protection	Contact: 8KV, Non-contact: 15KV
Operating Temperature	-35 °C ~ 66 °C (Outer Panel)
Operating Humidity	0 ~ 93% RH, no condensation
IP Rating	IP65 (keypad)
Lock Type	American standard deadbolt, supports 60 / 70 mm backset
Door Thickness Compatibility	35 mm – 55 mm
Door Gap Compatibility	2 mm – 10 mm
BLE	Standard: Bluetooth 5.0 Communication distance: Over 20 meters in open areas
Zigbee	Standard: Zigbee 3.0 Communication distance: Over 20 meters indoors
What is in the Box	Offline Version: What is in the Box: Smart Lock U100 × 1, User Manual × 1, Installation Diagram × 1, Key × 2, AA Battery × 4, Knob Removal Tool × 1, Opposite-Pull Screw Kit × 1, Bolt & Strike Plate Screw Kit × 1, Mounting Plate Screw Kit × 1, Aqara E1 Hub× 1, NFC Card × 2
