Aqara MagicPad S1 Plus
- Zigbee
- Wi-Fi
Requires a compatible Aqara Zigbee hub.
$699.00
A 6.9-inch wall panel with up to 10 dashboards of device and scene cards, three wired relays, and a Zigbee hub and Matter bridge built in.
- Secure card payment
- Visa & Mastercard
- Official Singapore sets
- Free Singapore delivery
- Local warranty
- GST-inclusive prices
Local warranty: 12 months, carry-in · Terms
Category: Smart Switches
Your whole home, on one wall panel.
A 6.9-inch full-screen smart switch, Zigbee hub, and Matter bridge in one wall panel — control the room by touch, Siri, or app.
- Full-screen display
- 6.9"Full-screen display
- Resolution
- 1440 × 720Resolution
- Dashboards × cards each
- 10 × 60Dashboards × cards each
- Zigbee devices on its hub
- 60Zigbee devices on its hub
- Bridge + hub built in
- MatterBridge + hub built in

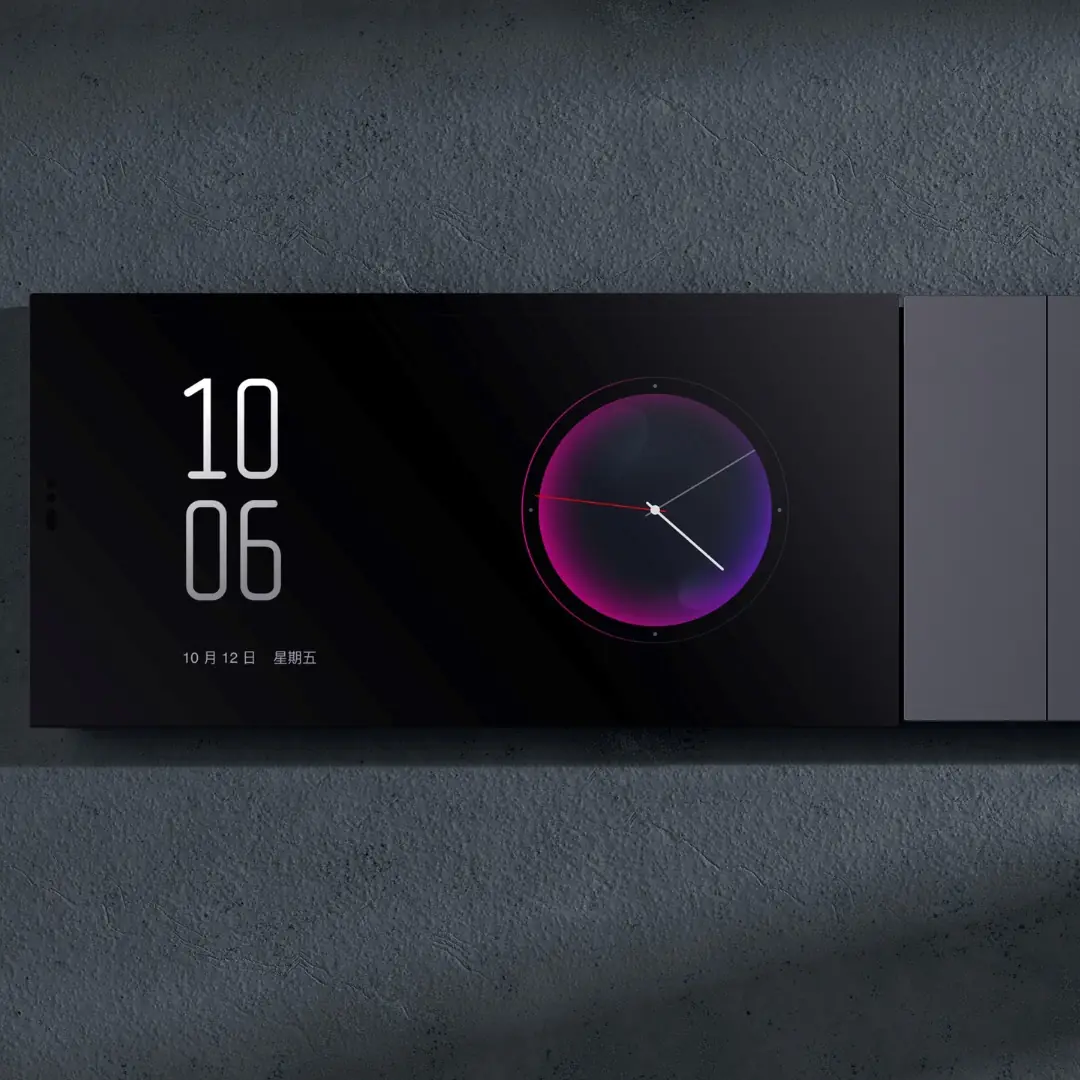

Themes and photos that suit the room
The 6.9-inch edge-to-edge screen keeps getting new looks and layouts — and can show your own family photos as wallpaper and screensaver, so the panel feels like part of the home rather than another gadget on the wall.
- Switch themes on-screen — pick a style and change it whenever the mood does
- Custom dashboards per room — up to 10 dashboards with up to 60 device or scene cards each — climate, lighting, cameras, music
- Family photo album — upload your own photos (up to 50 MB) for standby and screensaver

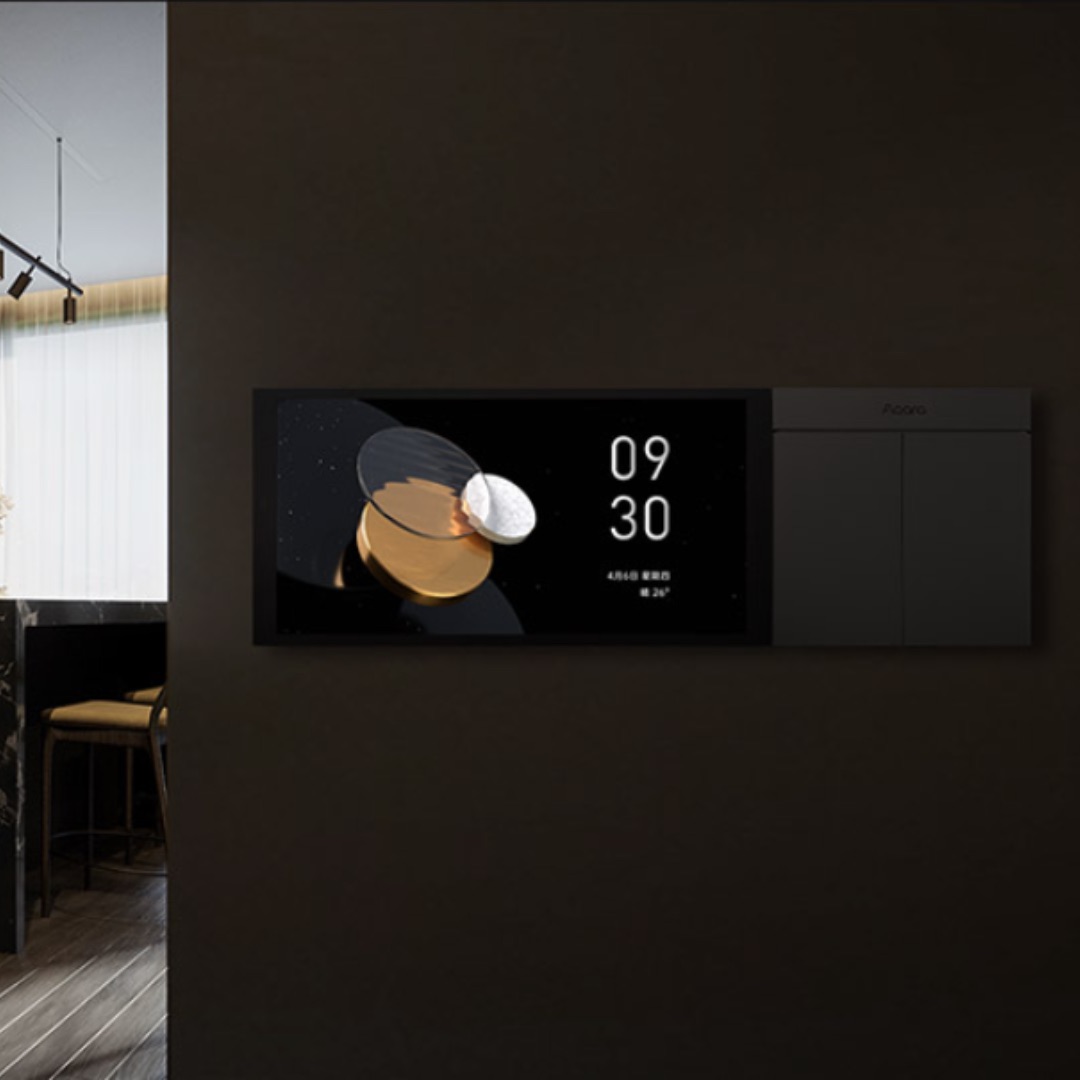

Three wired switches, plus six buttons for Apple Home
The panel mounts on a single standard 86 × 86 mm wall box — the front simply spans about two squares wide — and adds a screen. Three built-in relays handle your wired circuits. Separately, the panel appears in Apple's Home app as six wireless switches: give each one a job there, such as a whole-home scene or a light from another brand like Philips Hue, then place it on one of the panel's pages and tap it to run it. Your Aqara devices don't need them; they go straight onto the dashboards.
- MARS technology — keeps smart switches and smart bulbs working together, so dimmable lights stay controllable and don't drop offline
- 3 wired relays — physical control for three wired lighting circuits
- Apple Home ready — bind HomeKit scenes and accessories to the wireless switches and fire them from the screen
The brain behind the screen
A Zigbee hub, Matter bridge, and HomeKit bridge all live inside the panel. Connect up to 60 Aqara devices and carry them into Apple Home, Alexa, Google Home, SmartThings, Home Assistant, and Homey — controlled from the wall or from the Aqara Home app on your phone.
- Up to 60 Aqara devices — sensors, lights, curtains, climate and more, all on one hub
- Whole-home control — lighting, temperature, energy monitoring, and multi-room music from a single screen
- Visit, talk, unlock — see a caller, take the video call, and open the door on-screen with a compatible Aqara camera and video lock

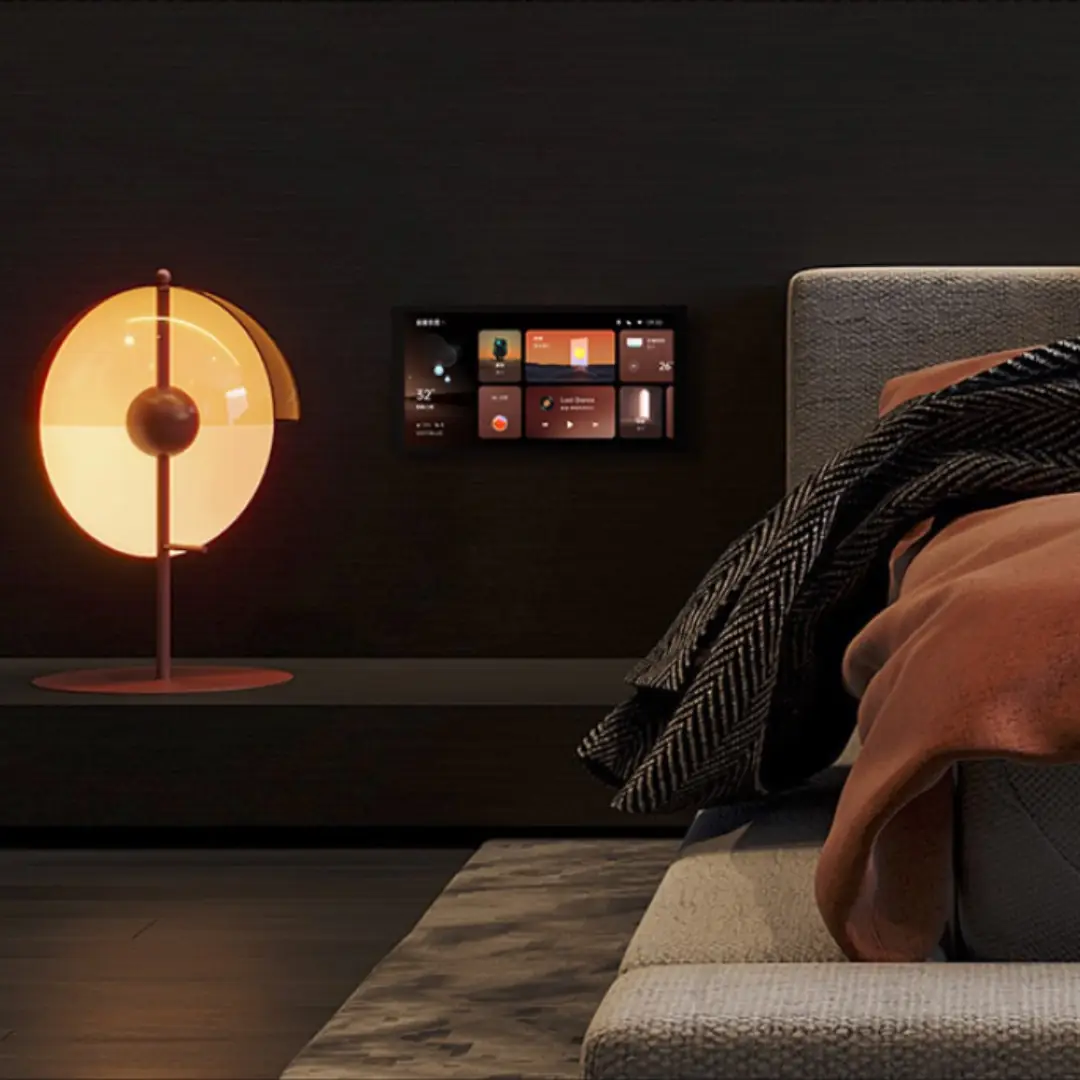

Control the room without reaching for your phone
Mounted where you live, the MagicPad keeps lighting, climate, music and scenes a tap away — then dims into a quiet bedside clock when the room settles.
Tech specifications
| Model | MP-K01D |
|---|---|
| Display | 6.9-inch touchscreen |
| Resolution | 1440 × 720 |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac (2.4 / 5 GHz), Zigbee |
| Built-in control | 3 relay switches; 6 wireless switches exposed to Apple Home |
| On-screen control | Up to 10 dashboards, up to 60 device or scene cards each |
| Input power | 100–240 V, 50/60 Hz |
| USB-C input | 5V ⎓ 2A |
| Rated load | Max. 2200 W (incandescent) · Max. 400 W (capacitive/inductive, e.g. LED) |
| Colour | Grey |
| Dimensions | 172 × 86 × 43.7 mm |
| Operating temperature | -10°C to 40°C |
| Operating humidity | 0–95% RH, non-condensing |
| In the box | MagicPad S1 Plus × 1, M4 screw × 2, screw bag × 1, User Manual × 1 |
Requires a neutral wire and a single standard 86 × 86 mm wall box (the panel front spans roughly two squares). The built-in voice assistant is region-dependent and may not be available in Singapore; touch, the Aqara Home app, and Apple Home / Siri control work here. Video intercom and on-screen camera view need a compatible Aqara camera and video door lock. Matter and HomeKit feature support varies by ecosystem.
Frequently asked questions
Can I only control six things from the MagicPad S1 Plus?
No. The panel holds up to 10 dashboards, each with up to 60 device or scene cards, and its built-in hub connects up to 60 Aqara Zigbee devices. The three relays switch your wired lighting circuits. The six wireless switches are a separate feature for Apple Home.
What are the six wireless switches for?
They are Apple Home's way into the panel. Once the panel is added to Apple's Home app, it shows up there as six wireless switches. In the Home app you give each one a job, such as a whole-home scene or a light from another brand like Philips Hue, then place that switch on one of the panel's pages in Aqara Home. Tapping it on the panel then runs whatever you assigned in Apple Home. If everything you want to control is Aqara, you can simply add those devices and scenes to the screen and may never need the wireless switches.
