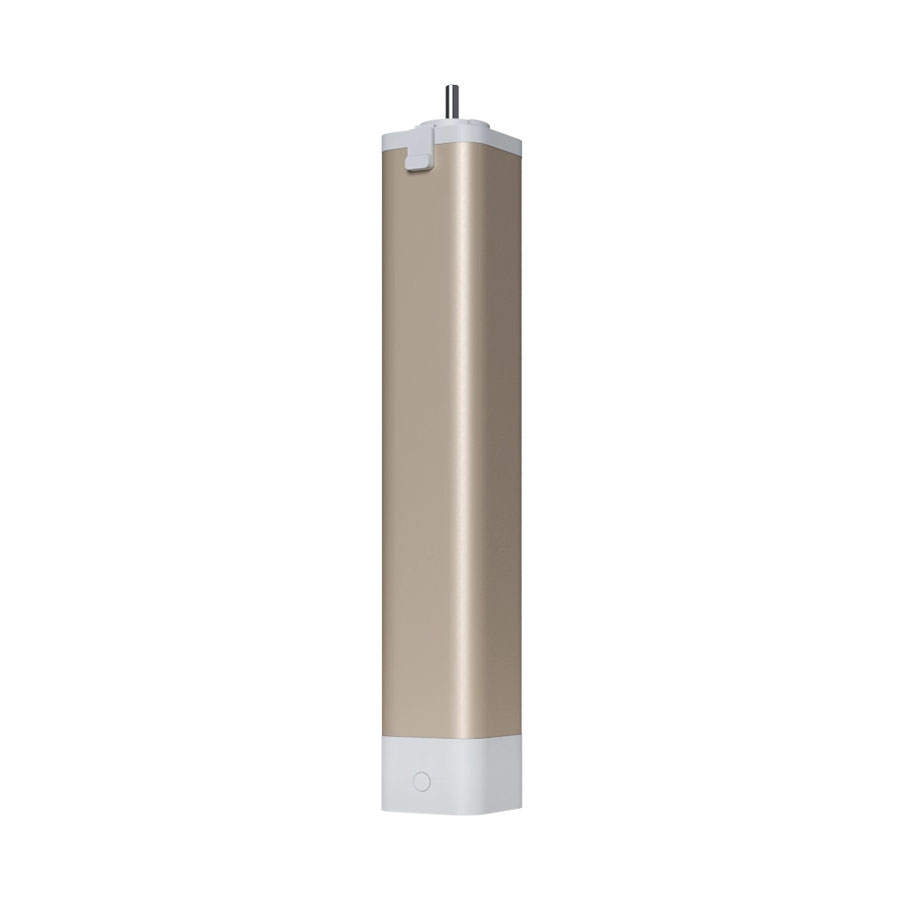

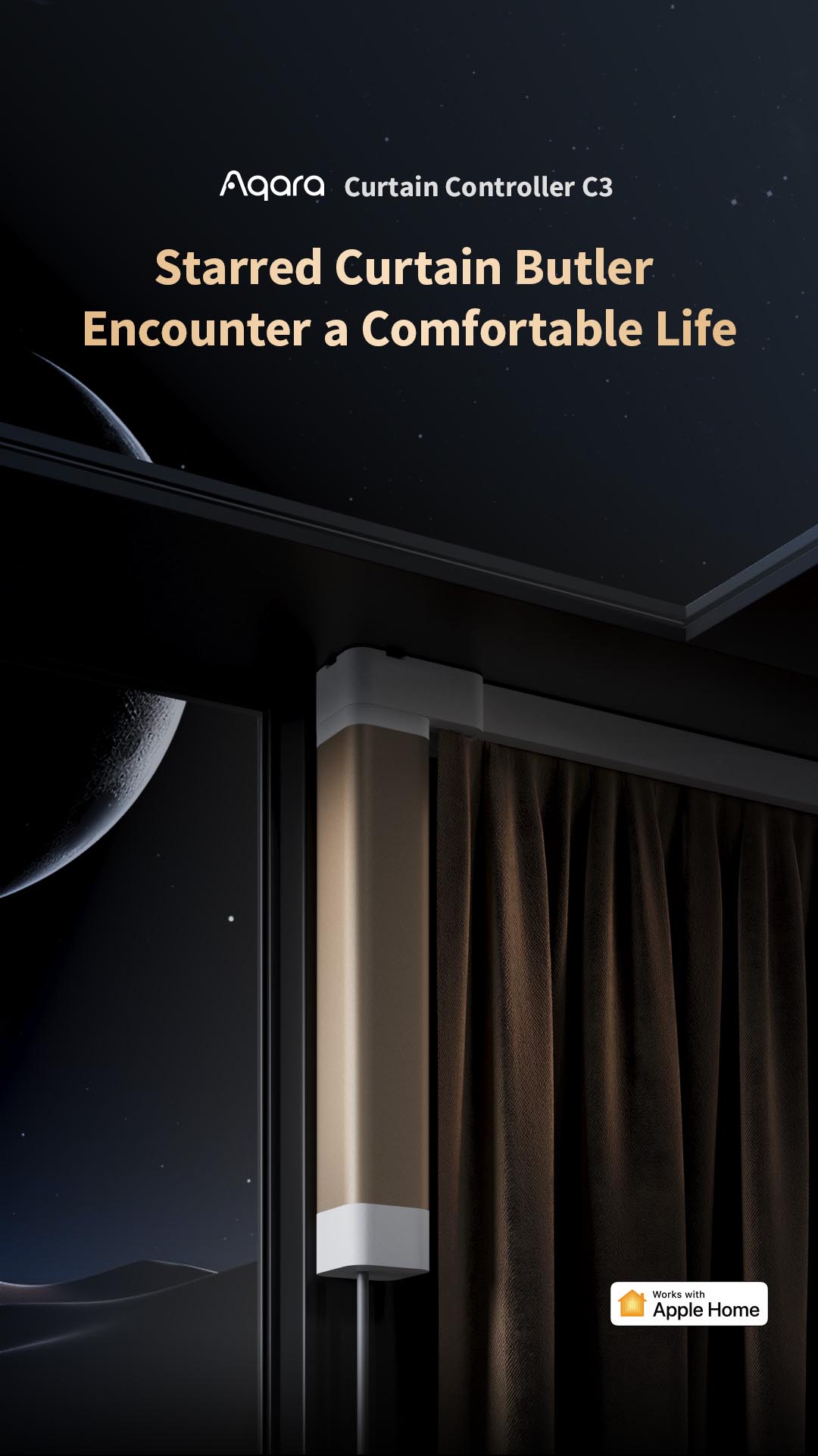

Aqara Curtain Controller C3
- Zigbee
Requires a compatible Aqara Zigbee hub.
$369.00

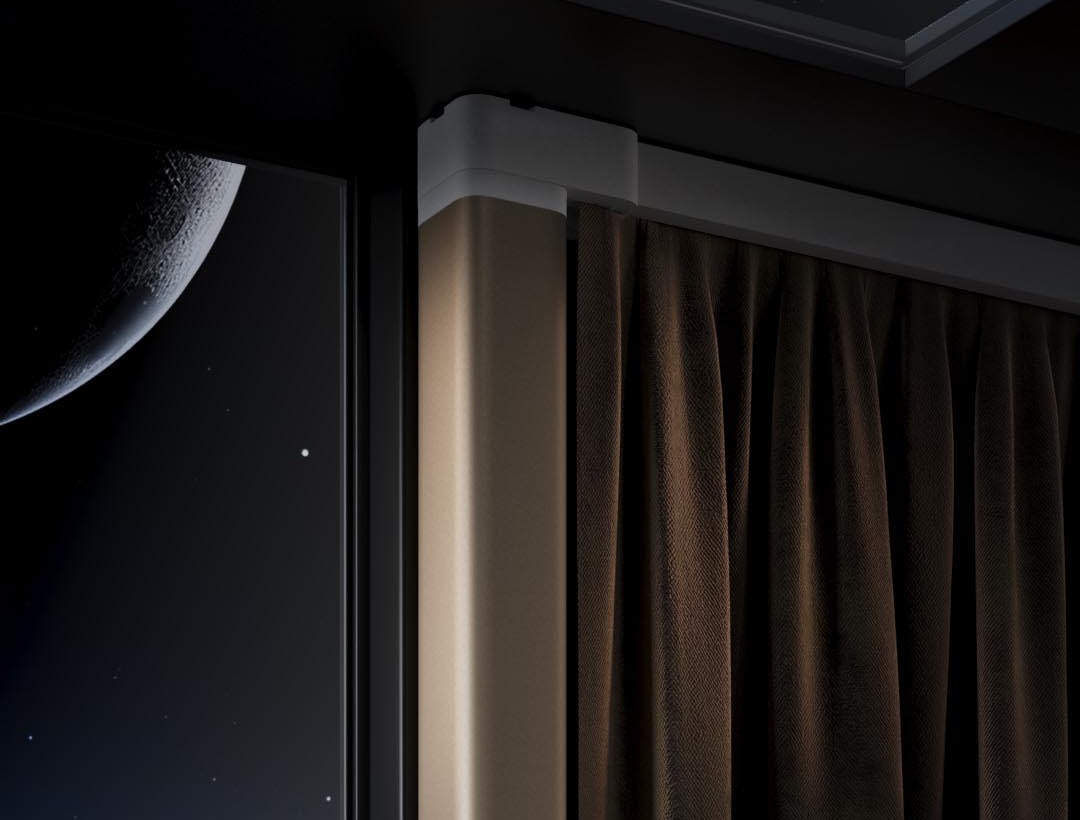

In stockAdvanced, heavy duty curtain motor that drives a motorized track, as part of an Aqara Smart Curtain System. Gain smart controls of your curtains.
- Secure card payment
- Visa & Mastercard
- Official Singapore sets
- Free Singapore delivery
- Local warranty
- GST-inclusive prices
Category: Smart Curtains & Blinds
Your curtains, on quiet autopilot

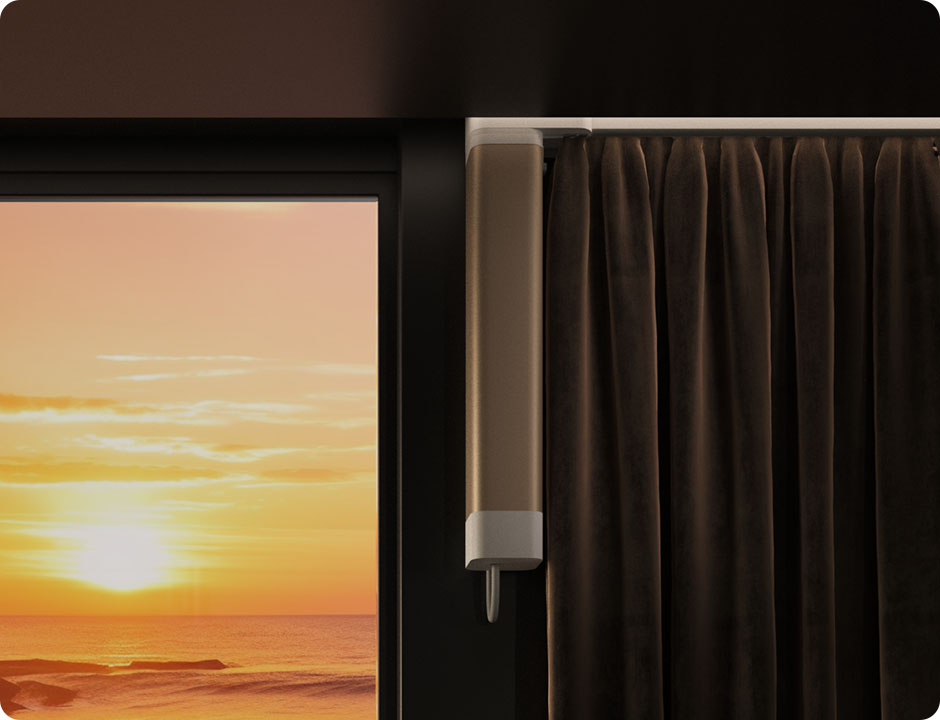

A heavy-duty motor that drives an Aqara motorised curtain track — schedule it, say it, or just give the curtain a tug.
- Motor torque
- 2 N·mMotor torque
- Max curtain load
- 80 kgMax curtain load
- Operating noise
- 26 dBOperating noise
- Adjustable open ratio
- 0–100%Adjustable open ratio
- Hub connection
- Zigbee 3.0Hub connection

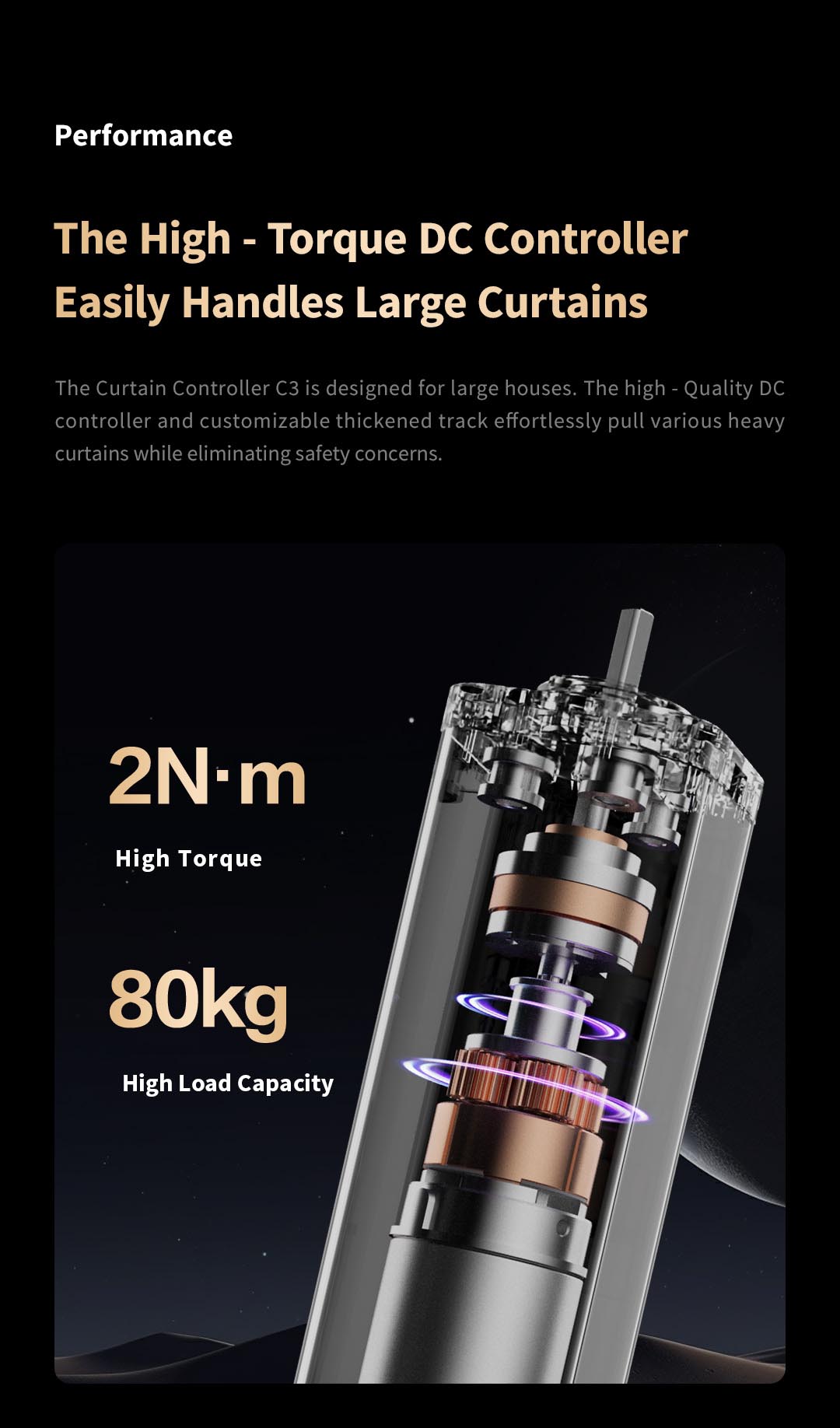

Built to pull the heaviest drapes
The C3 is made for large homes. A high-quality DC controller delivers real torque, while a bevel-gear drive keeps every open and close smooth — no jitter, no sudden jerks.
- 2 N·m of torque — handles large, floor-to-ceiling curtains without straining
- Up to 80 kg load — moves heavy blackout and velvet drapes with ease
- Bevel-gear drive — starts and stops smoothly, with none of the shudder of cheaper motors

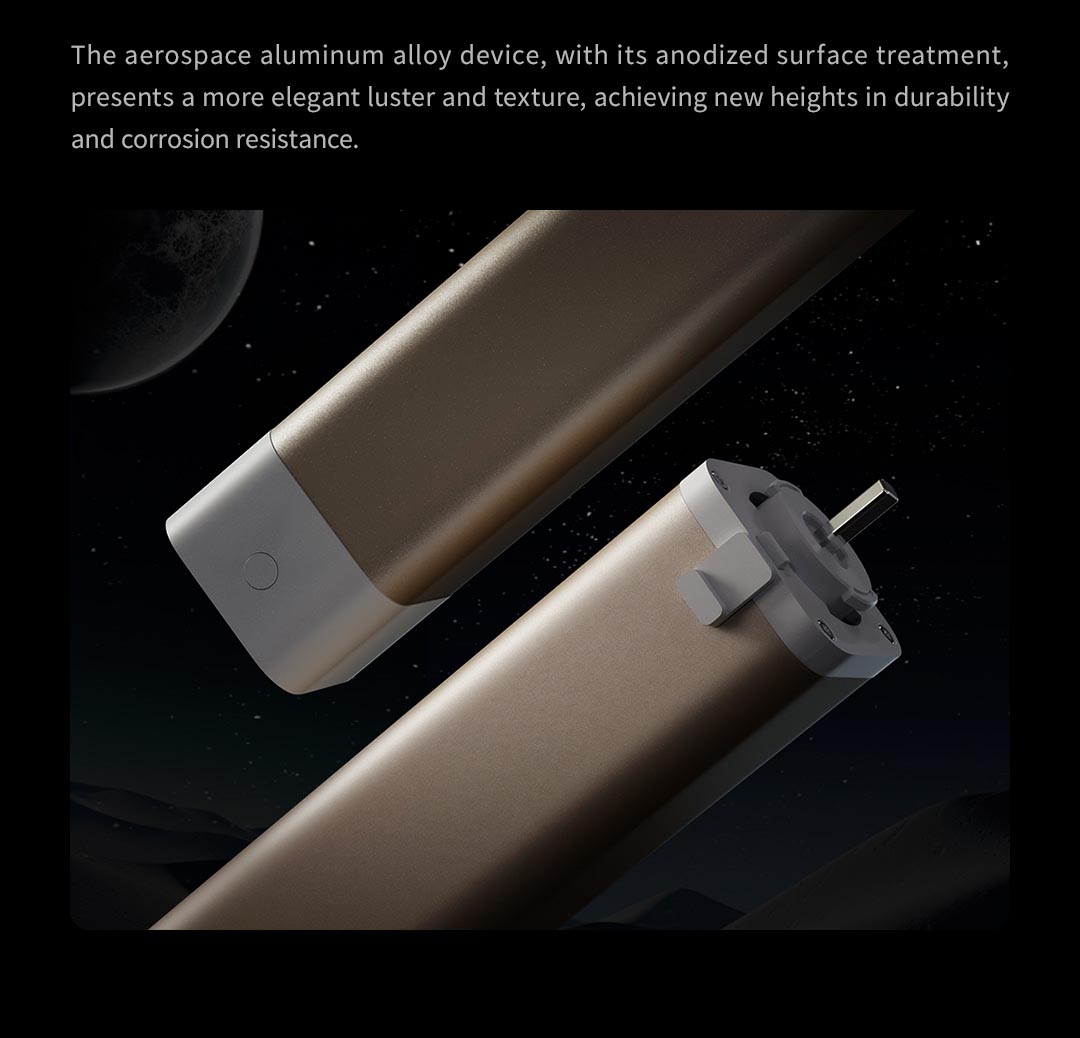

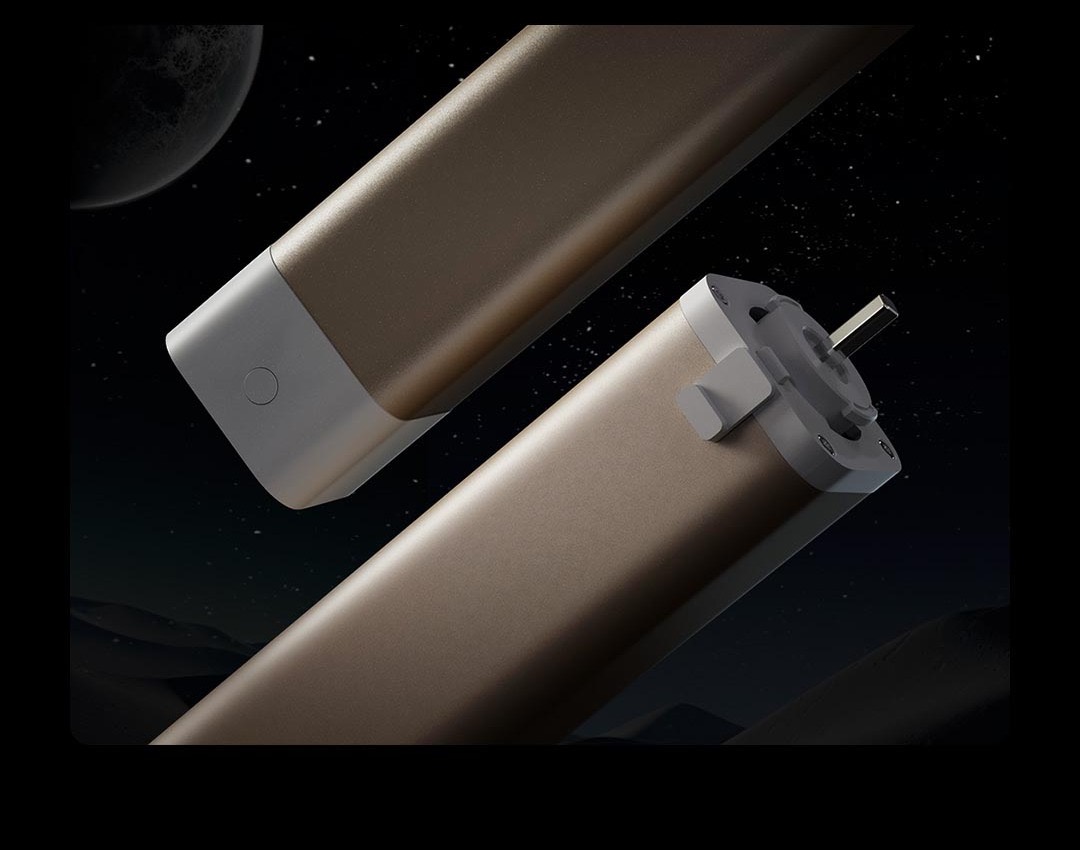

- Anodised aluminium body — aerospace-grade alloy with a matte, corrosion-resistant finish
So quiet you'll sleep right through it
The ultra-quiet DC drive runs at just 26 dB at its lowest speed — open the curtains at dawn without waking the room. A constant-speed algorithm corrects the motor up to 20 times a second, so travel stays even and shake-free.
- 26 dB at low speed — barely audible against a still, quiet room
- Infinite speed control — set any opening speed from 0 to 100% to match the moment
- Delicate light and shadow — a slow, gentle open lets morning light fill the room by degrees
Precision hardware, down to the last hook

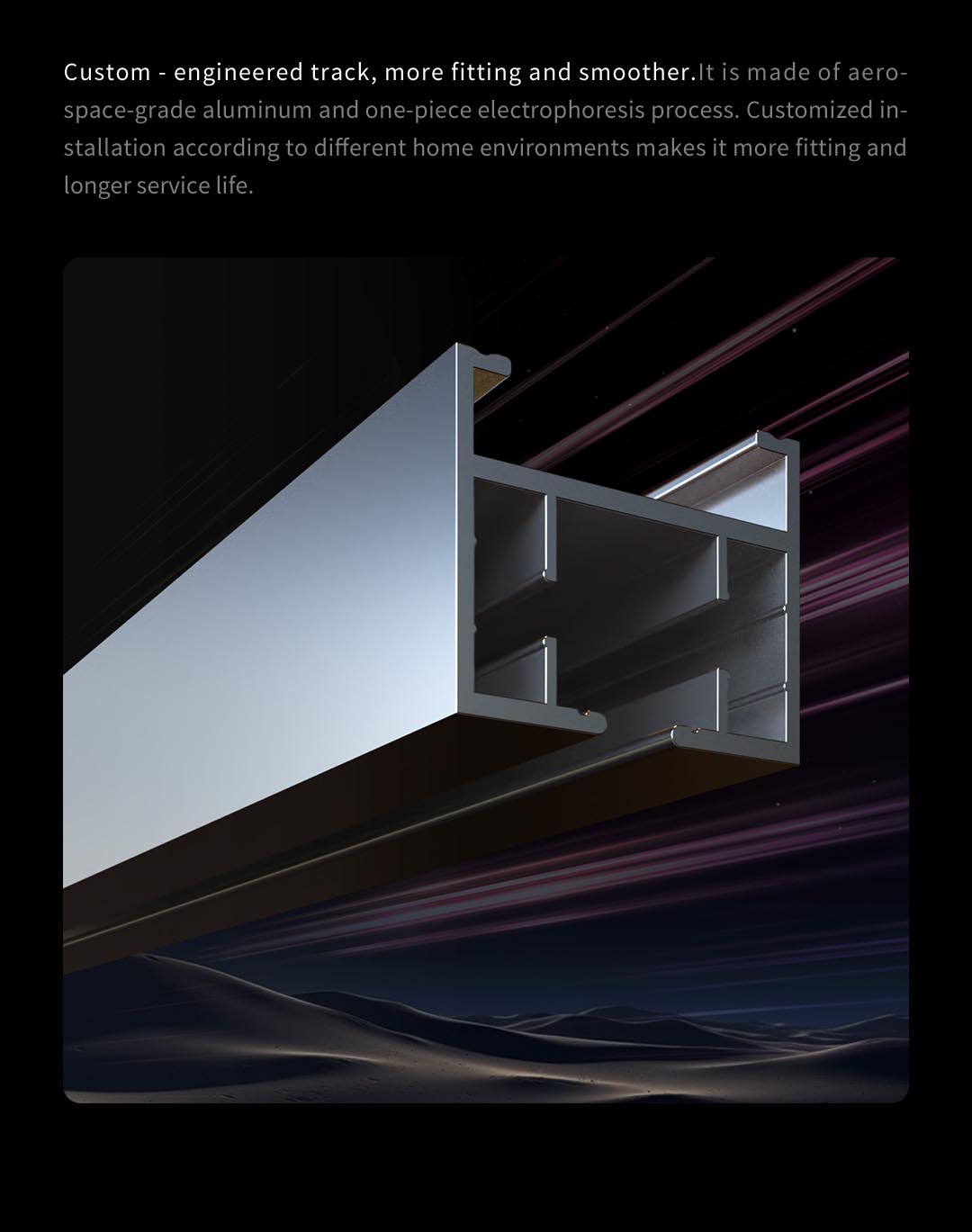

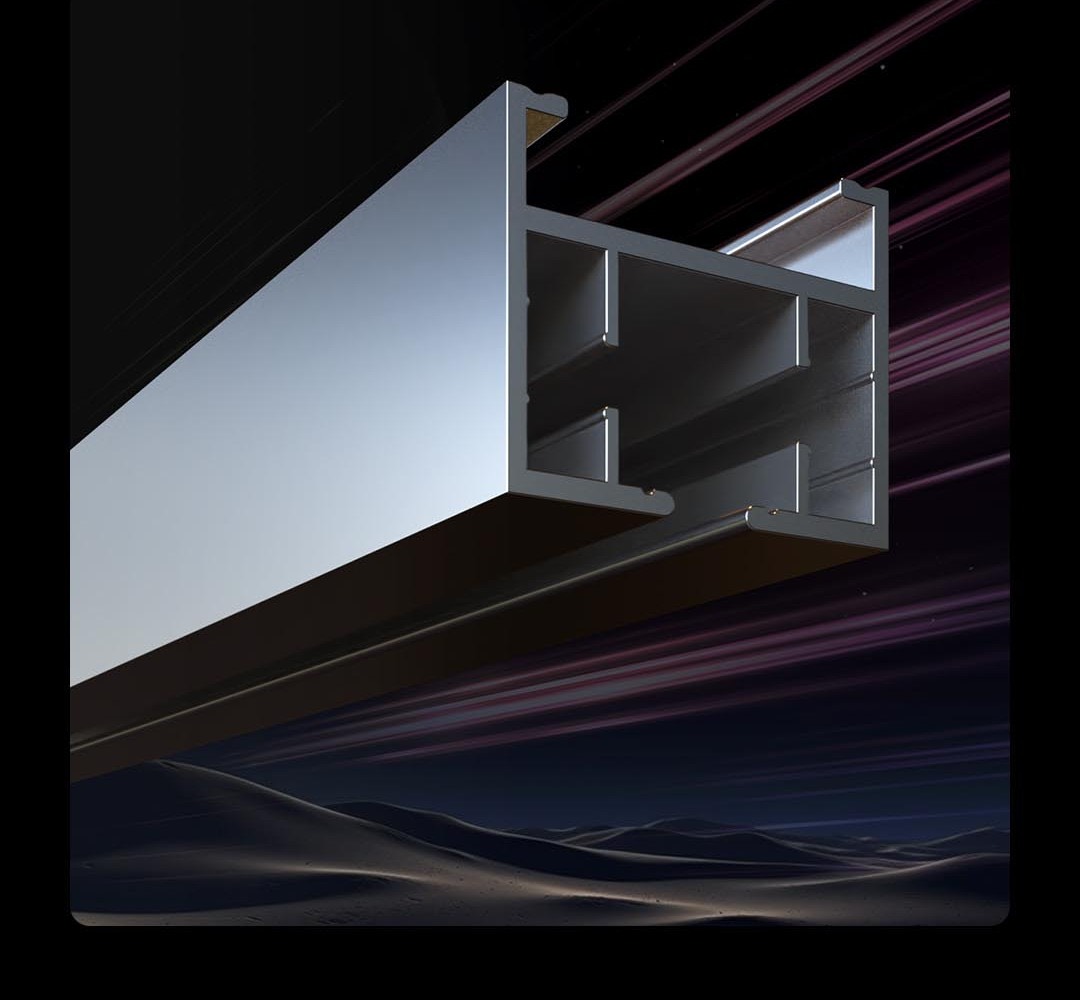

From the one-piece aluminium track to the stainless-steel pulleys, the C3 is built to run smoothly for years — and it still works by hand the moment the power goes out.
- Manual pull to start & stop — nudge the curtain and the motor takes over — and it still opens by hand during a power cut

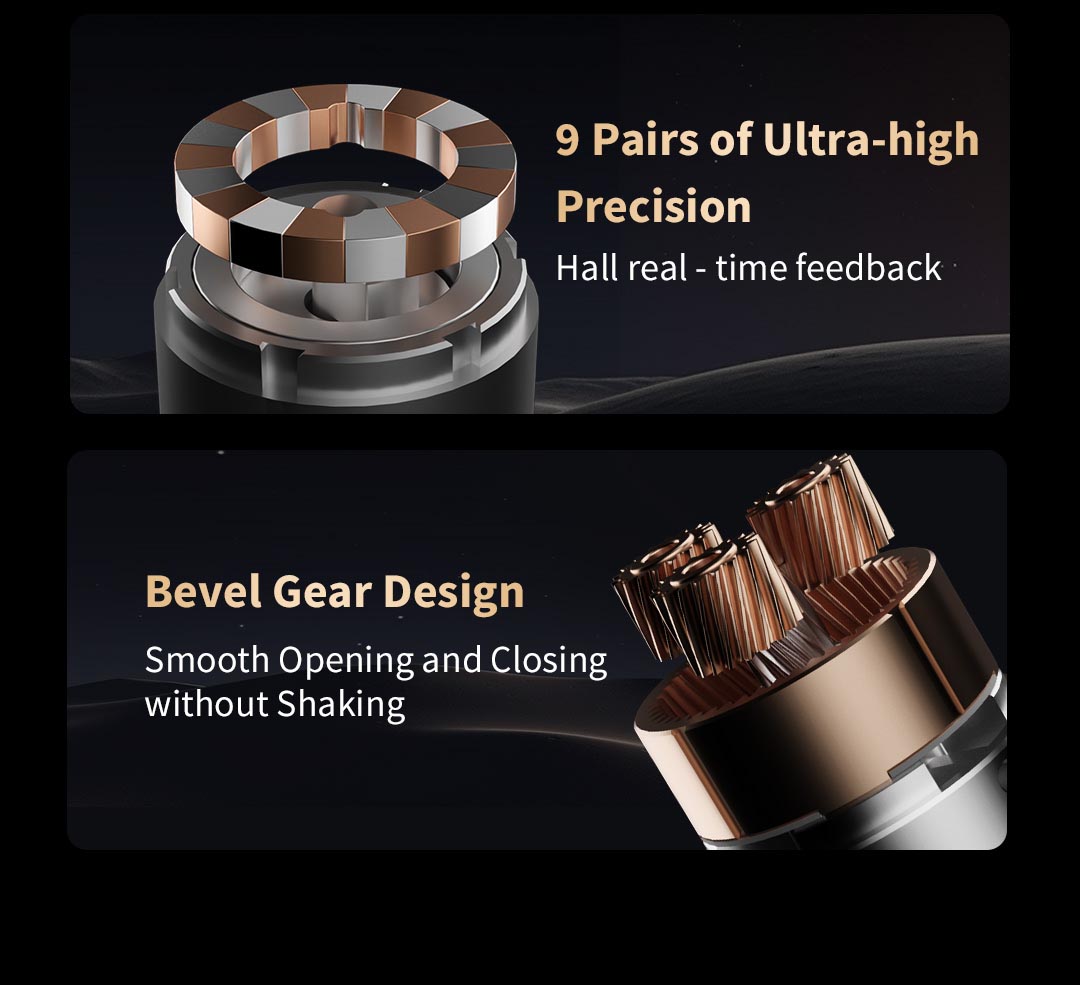

- 9-pair Hall positioning — ultra-precise real-time feedback stops the curtain exactly where you want it
- Adjustable travel — set precise open and closed points to clear any obstacle at the window
- Built to endure — aerospace-aluminium track, a 7-wire reinforced drive belt and stainless-steel pulley hooks
Curtains that move with your day
Open at 7:30 to the morning light, close at 22:00 for sleep, or say goodnight and let one scene draw the drapes and dim the lights together — all from the Aqara Home app, and Works with Apple Home.
Tech specifications
| Connectivity | Zigbee 3.0 (requires an Aqara Zigbee hub) |
|---|---|
| Motor torque | 2 N·m |
| Max curtain load | 80 kg |
| Operating noise | 26 dB at lowest speed |
| Speed control | Infinite, adjustable 0–100% |
| Position feedback | 9-pair Hall sensor, real-time |
| Housing | Anodised aerospace-aluminium alloy |
| Track | One-piece aluminium, custom length (sold separately) |
| Drive belt | M-type reinforced rubber, 7 steel wires |
| Pulley hooks | Stainless steel |
| Manual operation | Pull to start / stop; usable during a power outage |
| Works with | Aqara Home, Apple Home & Siri (via an Aqara hub) |
This listing is the Curtain Controller C3 motor only — it requires an Aqara motorised curtain track (sold separately, as part of the Aqara Smart Curtain System) and an Aqara Zigbee hub to work. Apple Home and Siri control require a compatible Aqara hub. The 26 dB figure was measured by Vkan Certification & Testing to GB/T 5171.21-2016 (report WTS2023-4999); real-world noise varies with track length and load. Ecosystem support and availability may vary in Singapore.
