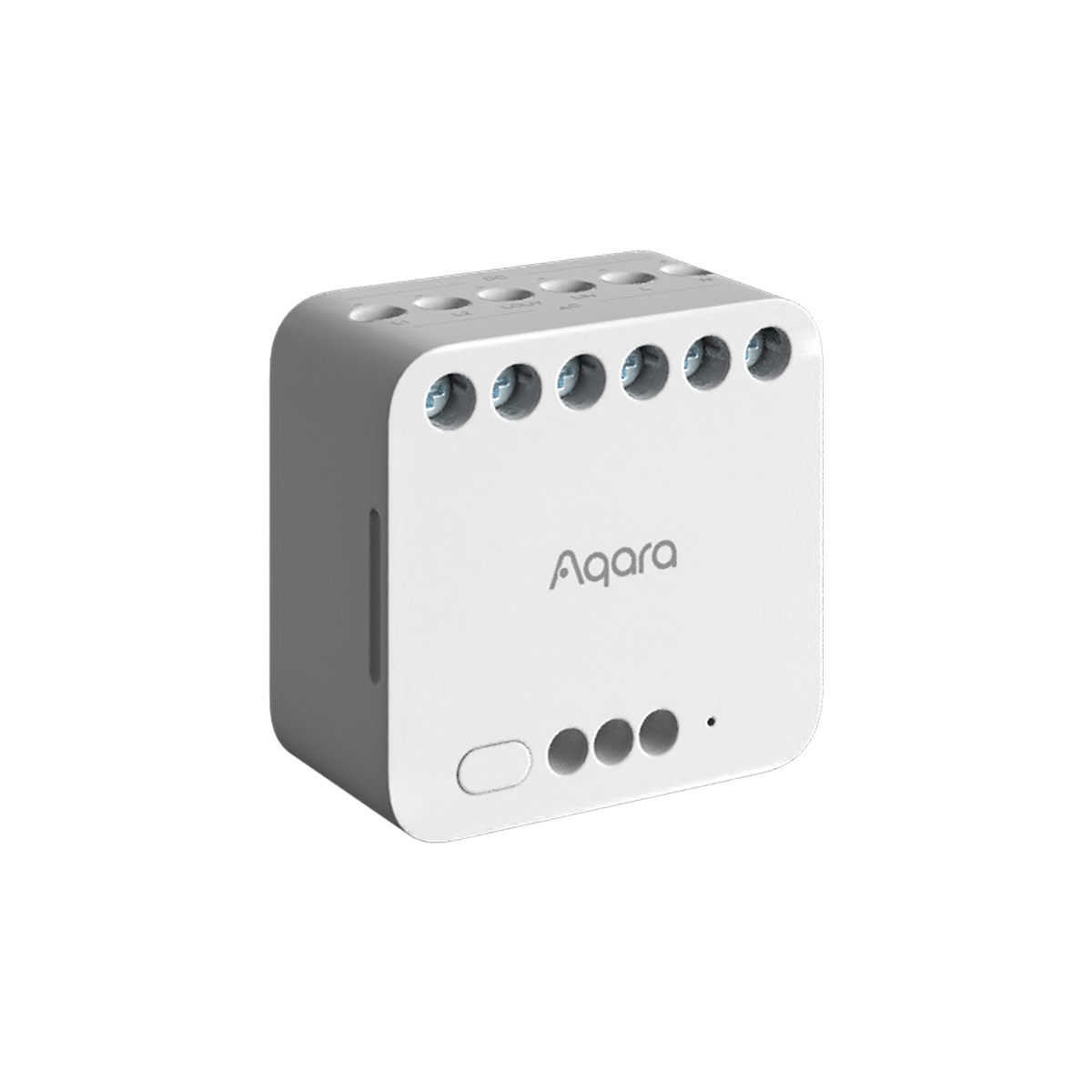

Aqara Dual Module Relay T2

Description

The Aqara Dual Relay Module T2 employs Zigbee technology to regulate power, managing on and off functions seamlessly. It is adept at controlling a wide array of devices, including motors, garage doors, lights, switches, and sockets, in both dry and wet contact modes. This module enhances the intelligence and capability of traditional equipment. Integrated with the Apple Home platform, it can be operated seamlessly via the Apple Home app and is broadly compatible with various third-party platforms. When connected to a hub, it enables features such as app-based remote control, timing control, and power statistics.

• Versatile Solution for Home: The T2 is versatile, adaptable to various installations. It can be implemented in ceiling lights for smart control or integrated into regular wall switches and sockets for remote access, and it is adept at automating coffee machines, air fresheners, electric heaters, roller blinds, and garage roller doors.
• Apple Home and Matter over Bridge Support¹: Compatible with Apple Home, Matter, Google Home, and Amazon Alexa, the T2 transforms traditional devices into smart, interconnected ones, seamlessly integrating with multiple third-party systems and enabling automated setups and linkage with other compatible products for a user-friendly experience.
• Interlock and Motor Control: The Dual Relay Module T2 can be connected to bidirectional motors safely and effortlessly, serving as a controller for tubular motors and a roller shade switch, and can function as the system’s core component.
• Energy Monitoring and Power Memory: It features a power on/off state memory function, retaining the last state after a power failure, and provides power metering and statistical features.
• Enhanced Safety and Security²: Safety is prioritized, especially given the complexities of installation and usage of DIY electrical equipment. It allows the adjustment of max and min voltage, current, and power values and automatically turns off the power supply in abnormal states to ensure safety.
• Wireless Switch Mode³: This mode is also supported, allowing the existing wall switch to be converted into a scene controller to arm or disarm the security system and control curtains or lights using your existing wired switch.
• Ease of Use and Installation⁴: With its DIN rail-mounted design, the relay can easily be placed in electrical cabinets and other confined spaces. Its compact size is also suitable for other wall boxes, including the 86 mm and US-standard ones.

¹ Apple Home, Google, Alexa, and Matter are not natively supported; they are supported over a Zigbee bridge.
² The installation of T2 is designed for users familiar with electrical installation. It is strongly recommended to contact a professional electrician and use these instructions only as a reference.

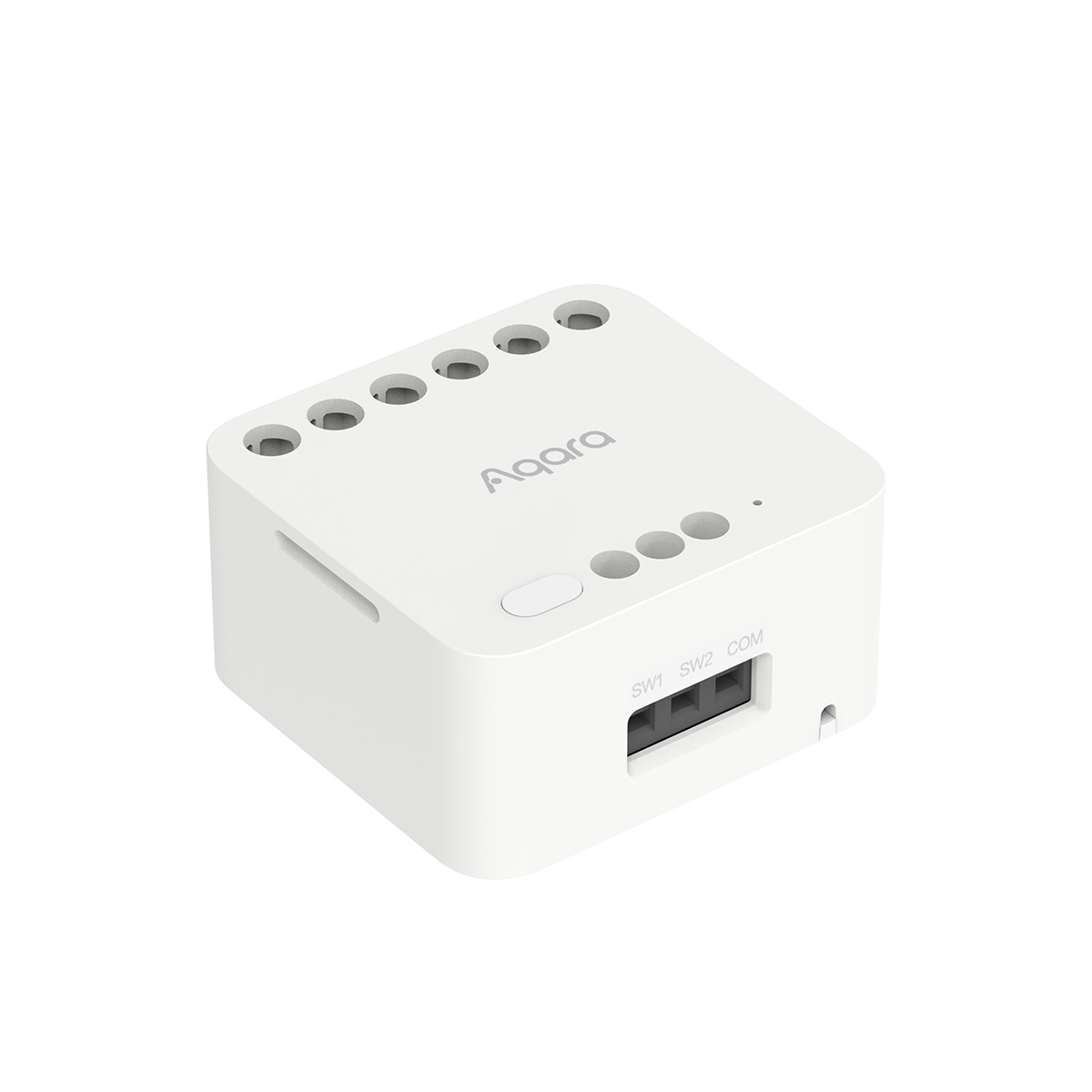

³ Please note: any sensor or switch connected to S1/S2/COM contacts should be compatible with the voltage supplied to the Relay.
⁴ It is important to note that the T2 supports a maximum current of 10A. A wall box with a depth of approximately 60 mm is recommended. If the existing wall box is not sufficiently deep, consider using a Wireless Remote Switch H₁ or a surface-mounted or ultra-thin wall switch to control the Relay.

Specifications

Product Name: Aqara Dual Relay Module T2
Model: DCM-K01
Wireless Protocols: Zigbee
Dimensions: 45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.)
Rated Parameters:
AC:
100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp);
Max.1A, Max 250W(LED, CFL Fluorescent Lamp);
Max 1A, Max 1/4 HP (Motor) M.1
DC:
24-30V: Max.10A, Max 300W (Resistive Load);
30-60V: Max.1A, Max 60W (Resistive Load)

Operating Temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
Operating Humidity 0 ~ 95% RH, no condensation
Zigbee Operation Frequency: 2405-2475 MHz
Zigbee Maximum Output Power: ≤ 13 dBm
What is in the Box:
Dual Relay Module T2 × 1,
User Manual × 1,
DIN Rail Accessory × 1,
Jumper Wire × 1
