SM611H Abrasive Mop Wheel

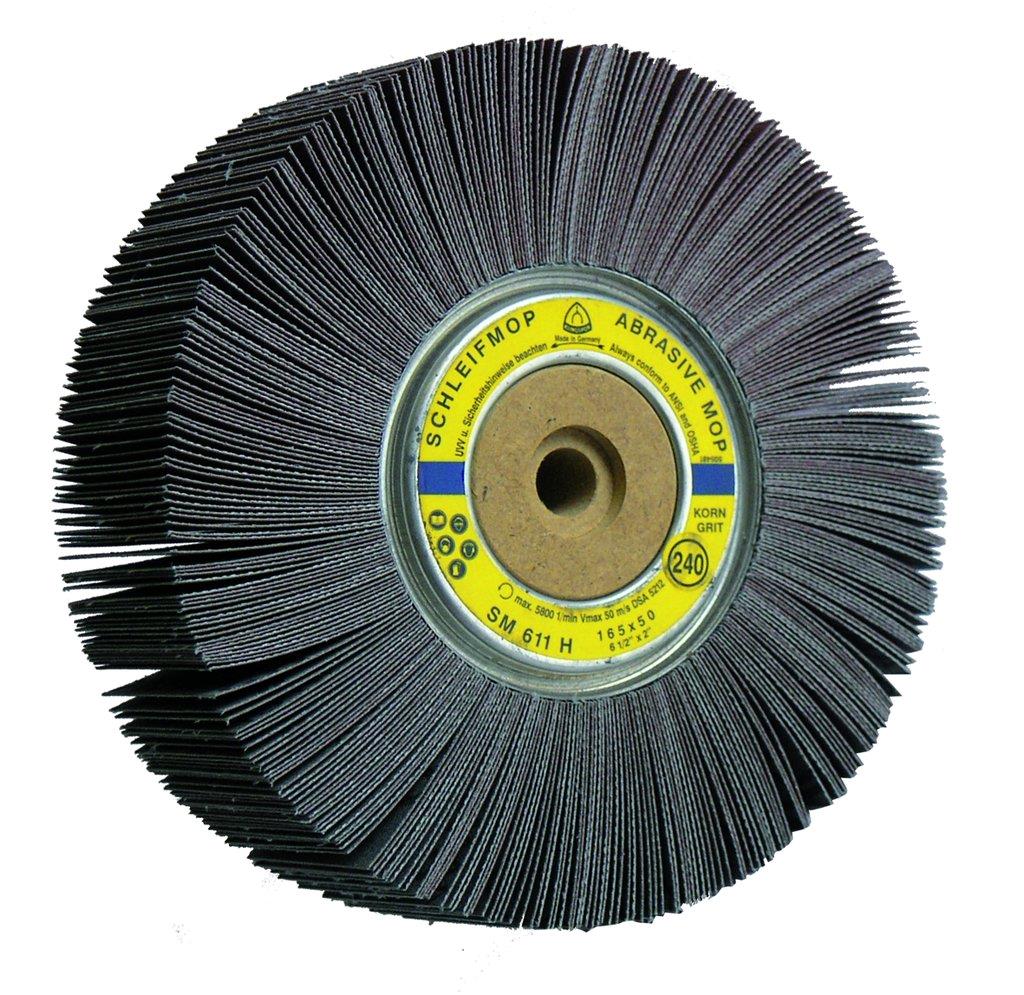

Klingspor SM 611H Abrasive Mop Wheel

Abrasive mop wheel with wooden core. Mounting bore diameter of 13 mm for fast mounting. Even surface scratch pattern due to continuously fresh, unused abrasive grit. For universal use on all materials. Adapts optimally to workpiece contours. Also called “flap wheel”.

Wooden core means it can be used without mounting plate SMD 612. Also, enlargement of the mounting bore is relatively uncomplicated.

Developed by Klingspor over 40 years ago, the abrasive mop wheel has found many practical and economical uses in surface finishing work. The Klingspor abrasive mop wheel comprises of high quality grinding flaps coated with aluminium oxide. The fan-shaped radial arrangement is firmly anchored by a resign core at the centre of the abrasive mop wheel. The structure of the abrasive mop wheel provides for very soft, comfortable grinding behaviour and adapts optimally to the contours of the workpiece. Klingspor abrasive mop wheels are especially suited for achieving a very smooth surface finish.

[table colwidth=”25%|75%” colalign=”left|left”]
Grain,Aluminium Oxide

Bonding Agent,Resin

Suitable for,”Wood, metals, plastic, paint, varnish, filler”
[/table]

Available grit sizes

[table colalign=”center|center|center|center|center”]
16,24,30,36,40

50,60,80,100,120

150,180,220,240,280

320,360,400,500,600

800,1000,1200,1500,2000

[/table]

Articles and Sizes
Diameter x Width in mmGritMax. RPMPieces / box
165 x 25605,8005
165 x 25805,8005
165 x 251005,8005
165 x 251205,8005
165 x 251505,8005
165 x 251805,8005
165 x 252205,8005
Suitable for
Floor Standing Grinder

Floor Standing Grinder

Flexible Shaft Grinder

Flexible Shaft Grinder
