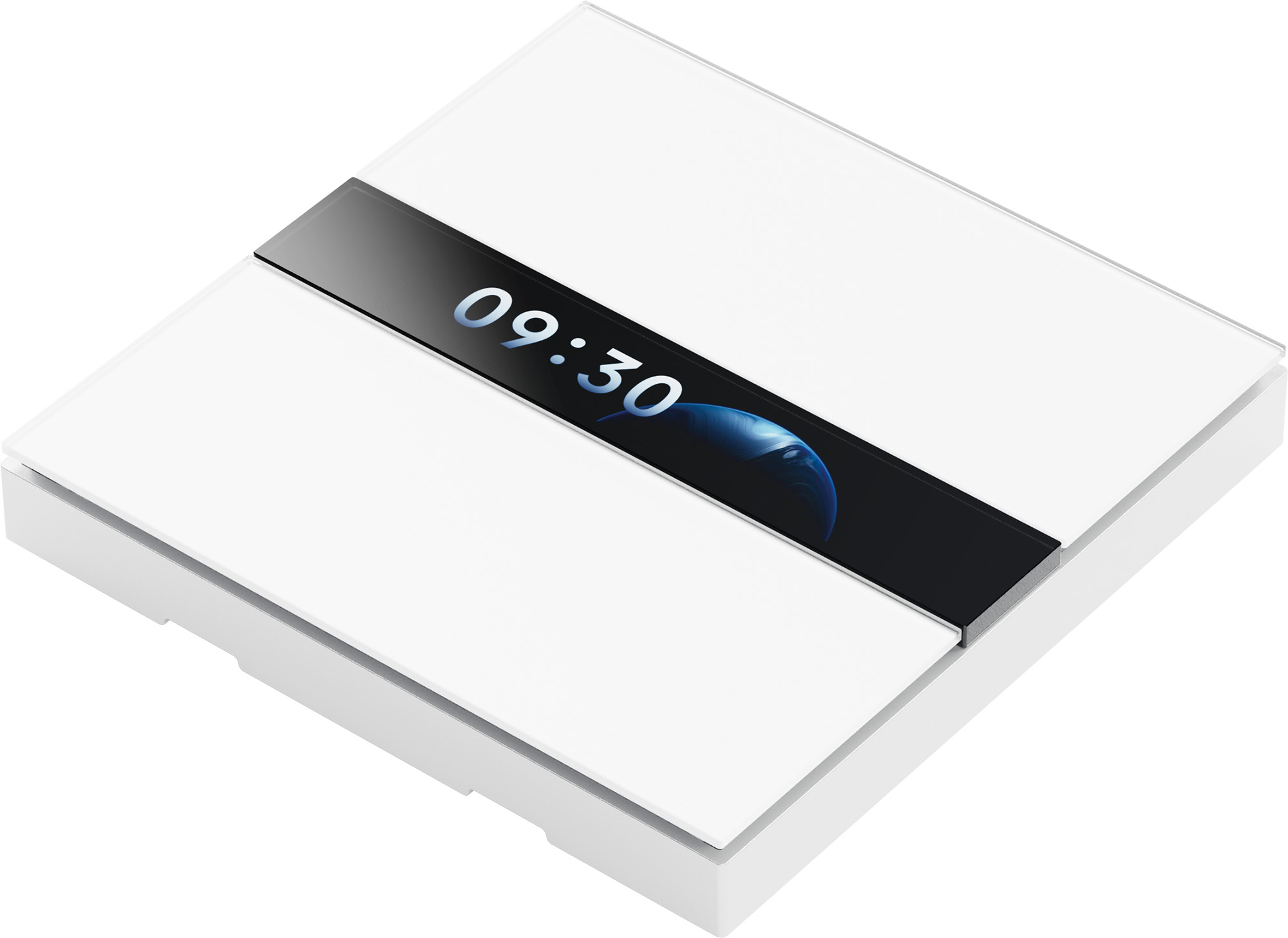

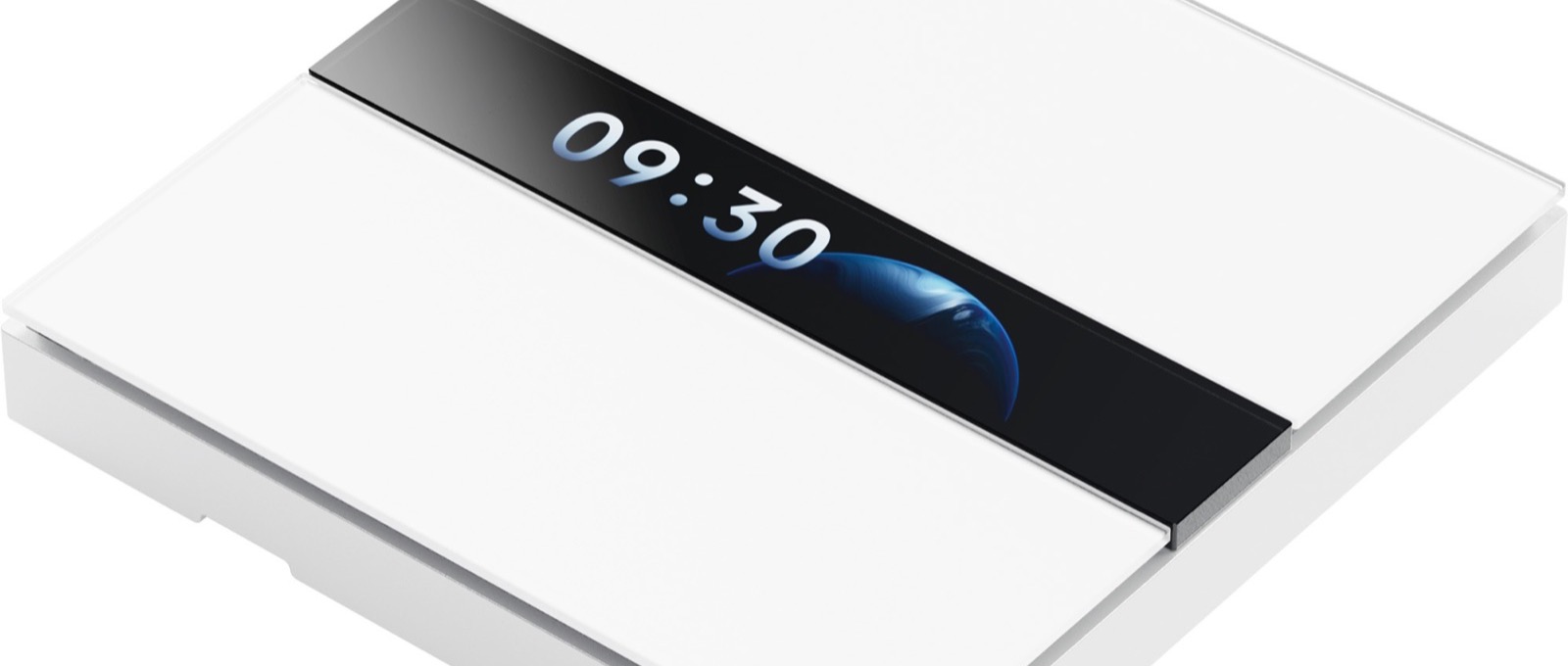

Aqara Display Switch V1

Description

The Aqara Display Switch V1 is a two-channel neutral wall switch which equipped with four physical buttons and a LCD screen, customisable with texts that match the device and user habits. Its power monitoring function can help users improve energy efficiency. With matter over bridge, users can access the switch in the third-party ecosystem.

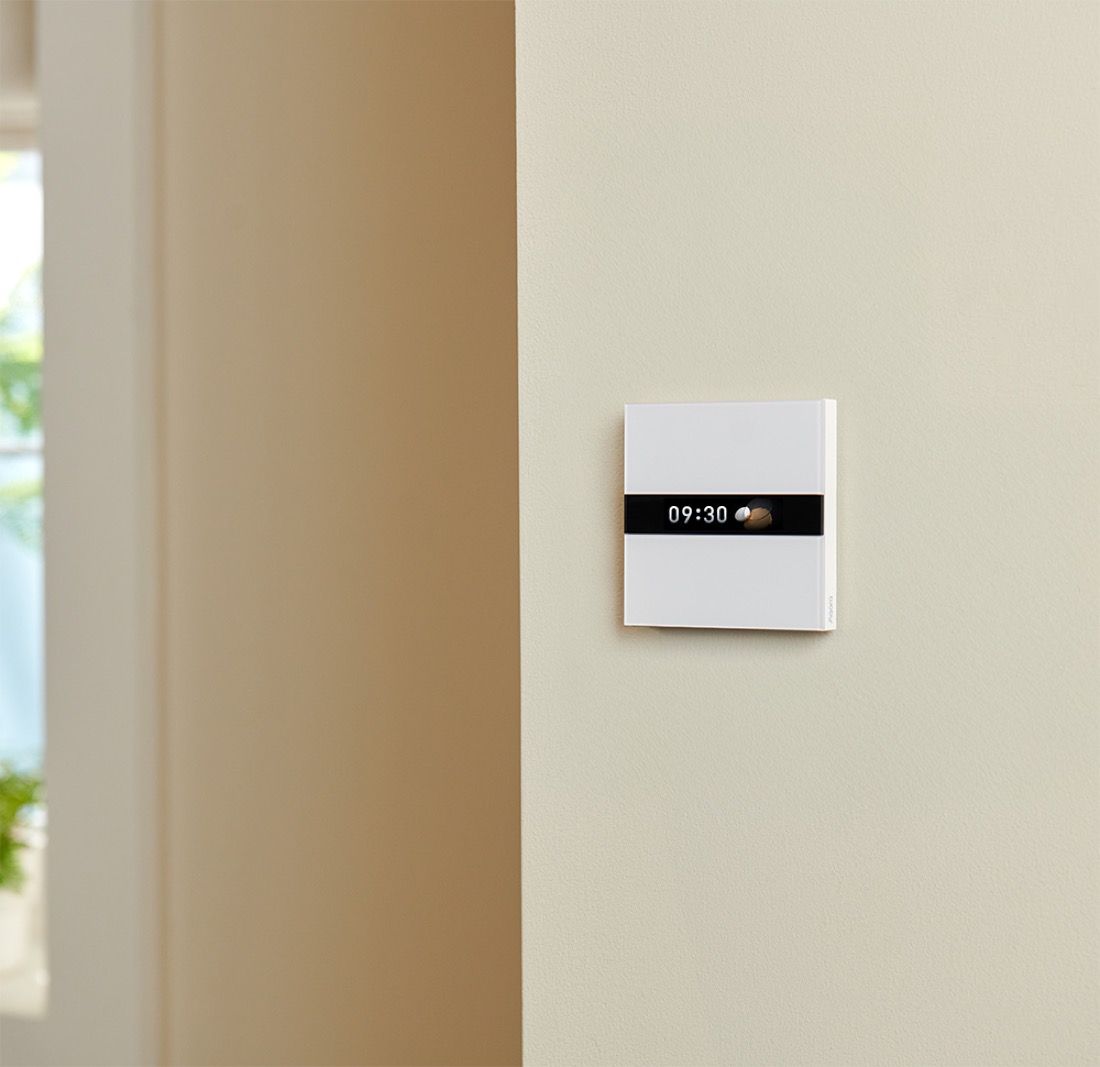

• LCD Screen: Featuring a 2.08 inch LCD screen displaying user-defined texts and icons, ensuring clear identification of the device controls. Users can adjust text size, colour and icons for a tailored and user-friendly experience.

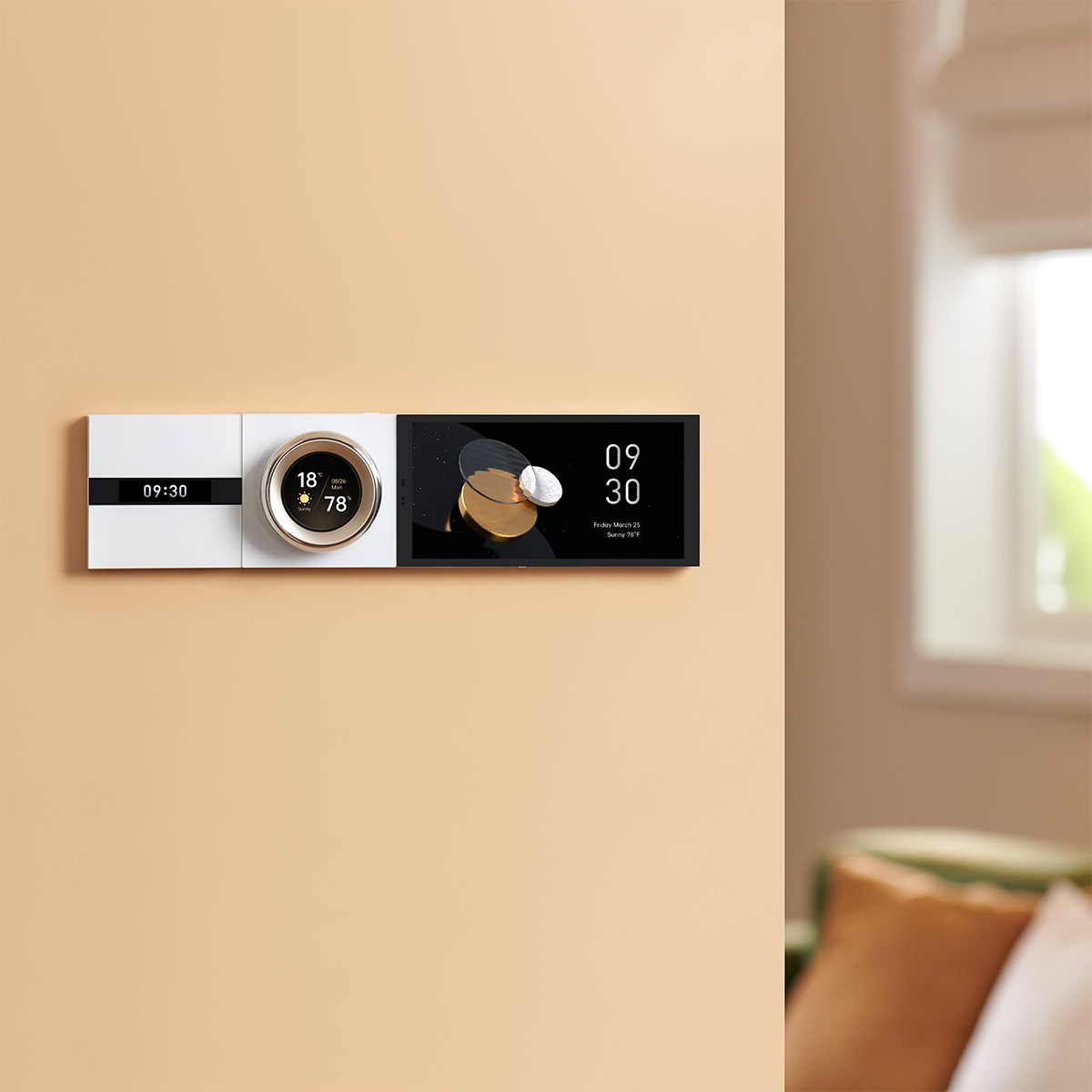

• Touchscreen with Information: See weather information and the time directly on the screen, at any time.
• Wireless options: Working as a 2 gang switch, 2 buttons on the left are electrical switches, and 2 buttons on the right are wireless switches. With the flexibility of converting 2 electrical switches into wireless, you can directly configure devices and scenes into Aqara Home and easily control them through the switch.
• Smart Home Ecosystem: The Aqara Display Switch V1 has Zigbee with Matter over Bridge support, enabling integration with third party ecosystems such as Apple Home, Google Home, Samsung SmartThings, Home Assistant and Homey. With Zigbee, it can be used as a repeater maintaining stable communication among subdevices. It has an ultra low standby power consumption, reducing electricity costs.
• Presence Detection: Having a built-in presence sensor, the switch allows users to trigger scenes based on distance. For example, setting a scene whereby IF someone is approaching, THEN set selected lights to low brightness.

– The Aqara Display Switch V1 is an actual wired switch, with terminals on the back of the panel, and meant for installations into walls.
– A neutral wire is required for installation.
– Switch replacements and installations are dangerous and pose a risk of injury or death. Do not attempt to do it yourself. Do engage an electrician to do any electrical works.

Specifications

Model: WS-KO2D
Dimensions: 86×86×42.2 mm
Wireless Protocol: Zigbee, Bluetooth
Rated input: 200 – 240V, 50/60 Hz, μ
Rated load: Max 8A
Operating Temperature: -10°C～40°C (14°F～104°F)
Operating Humidity: 0%~95% RH, non-condensation
What’s in the box: Aqara Display Switch V1 EU x 1, User Manual x 1, Compliance Statement x 1, Screw Kit x 1
