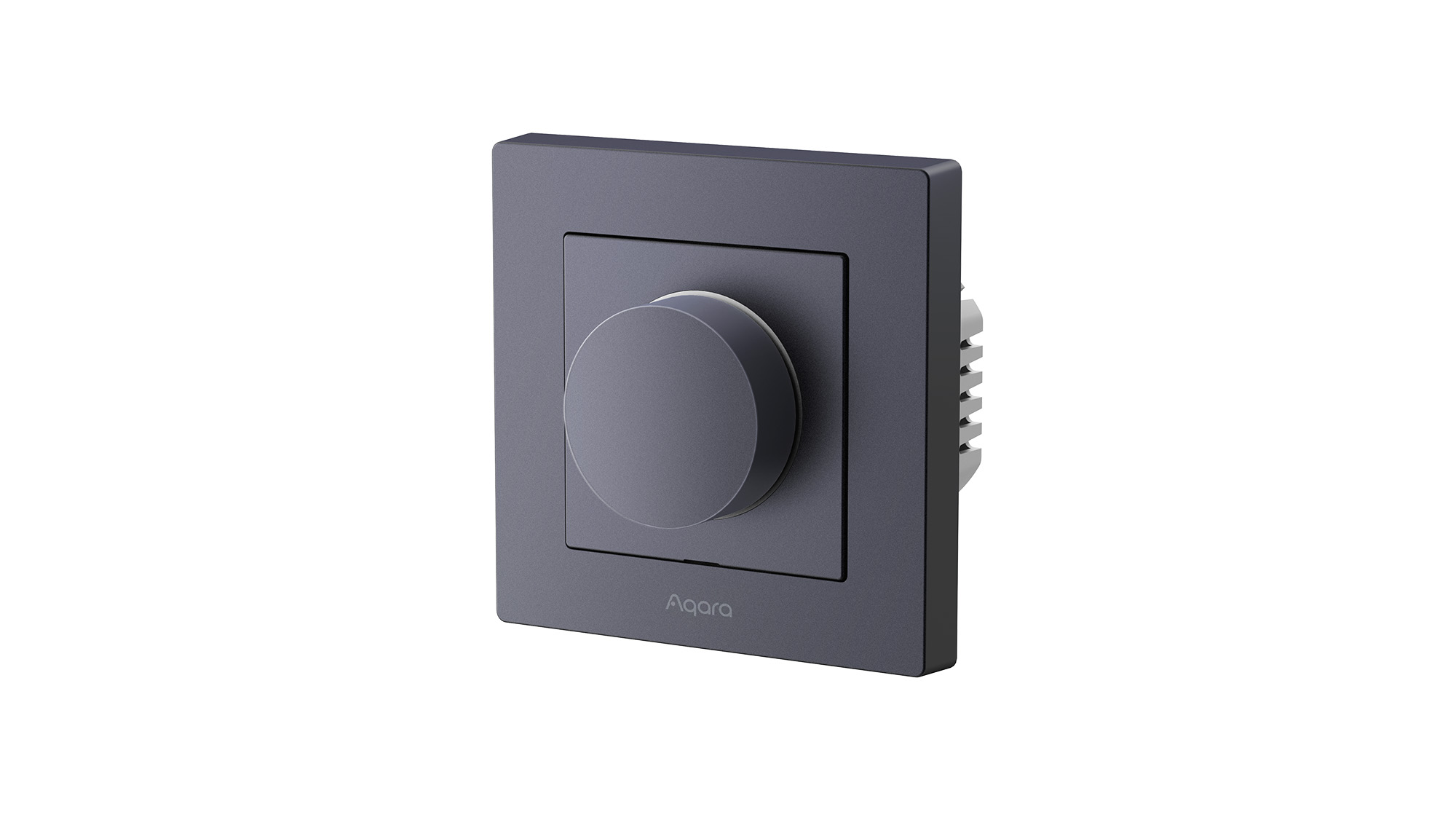

dimmer switch h2 grey
dimmer switch h2 white

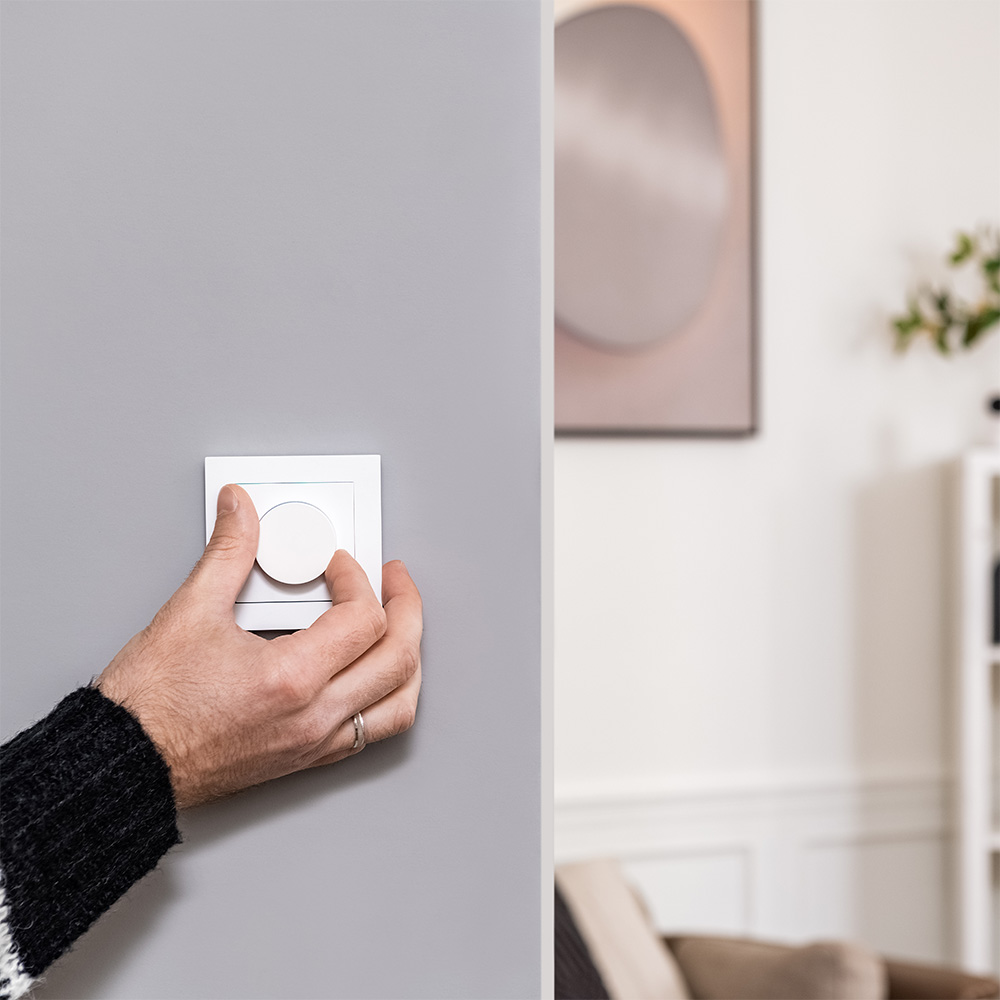

dimmer switch h2 scene 2
dimmer switch h2 scene 1
dimmer switch h2 scene 3

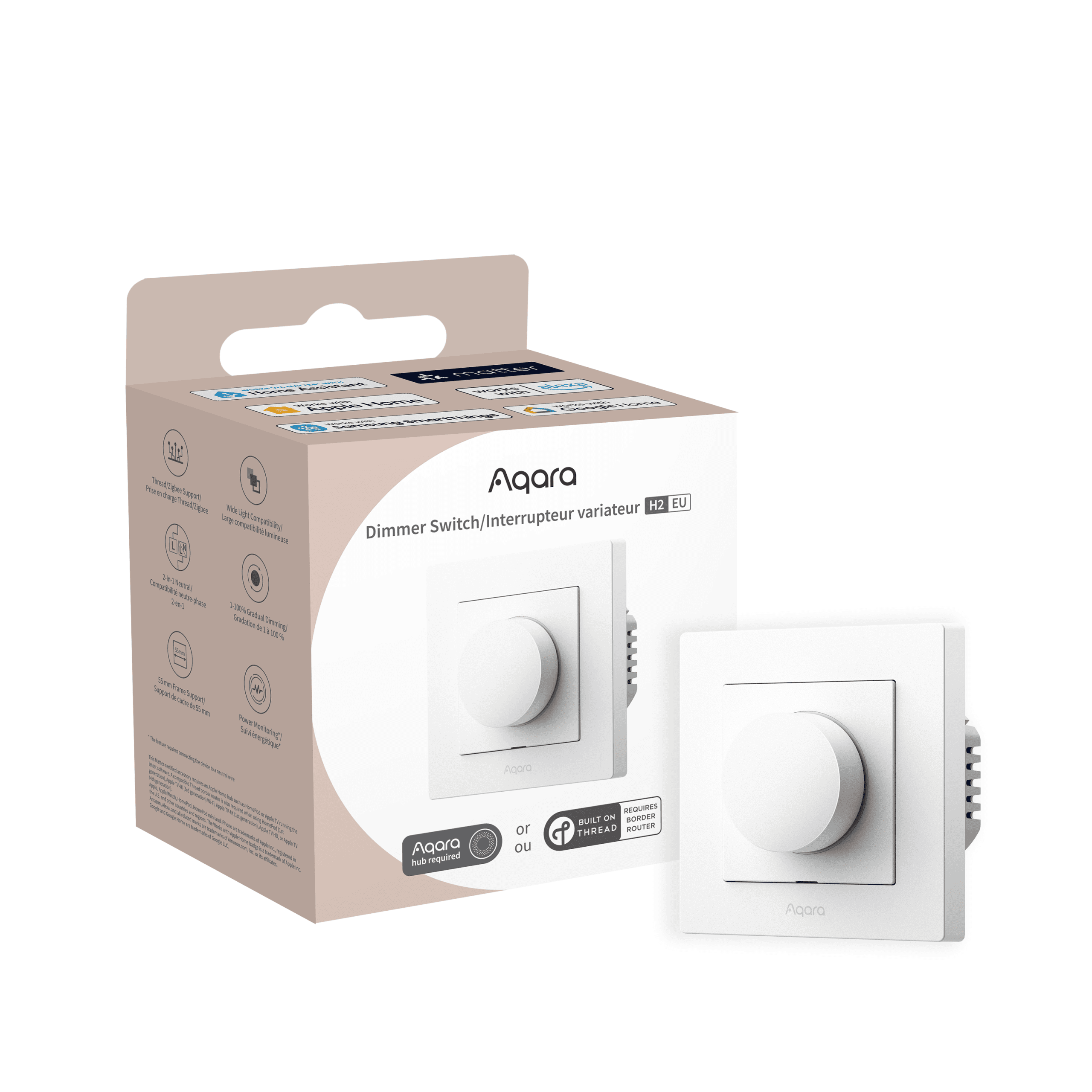

Aqara Dimmer Switch H2

Aqara Touchscreen Dial V1 is a smart with-neutral switch with haptic feedback rotary dial and 1.32” round touchscreen, that can intuitively control practically any smart home device. It is also equipped with a temperature-humidity sensor that can be used to control Aqara thermostats, as well as a presence sensor. It works over Wi-Fi, and can connect to third-party ecosystems via HomeKit, Alexa or cloud integrations.

This product is currently out of stock and unavailable.

SKU: N/A Categories: ,

Description

The Aqara Dimmer Switch H2 EU is a smart dimming dial based on the Thread & Zigbee wireless communication protocols, supporting both neutral and single live wire modes. It can directly adjust incandescent lamps, dimmable LED lamps, halogen lamps, fluorescent lights, and ELV fixtures, achieving seamless dimming with 1% precision. Users can manually switch between leading and trailing edge dimming modes for better compatibility with various light types. With a compatible hub, the switch enables remote app control, scheduled control, power monitoring, and more advanced automation with other smart devices.

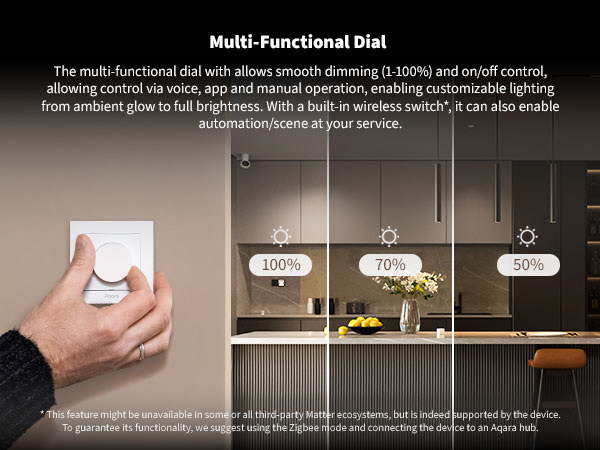

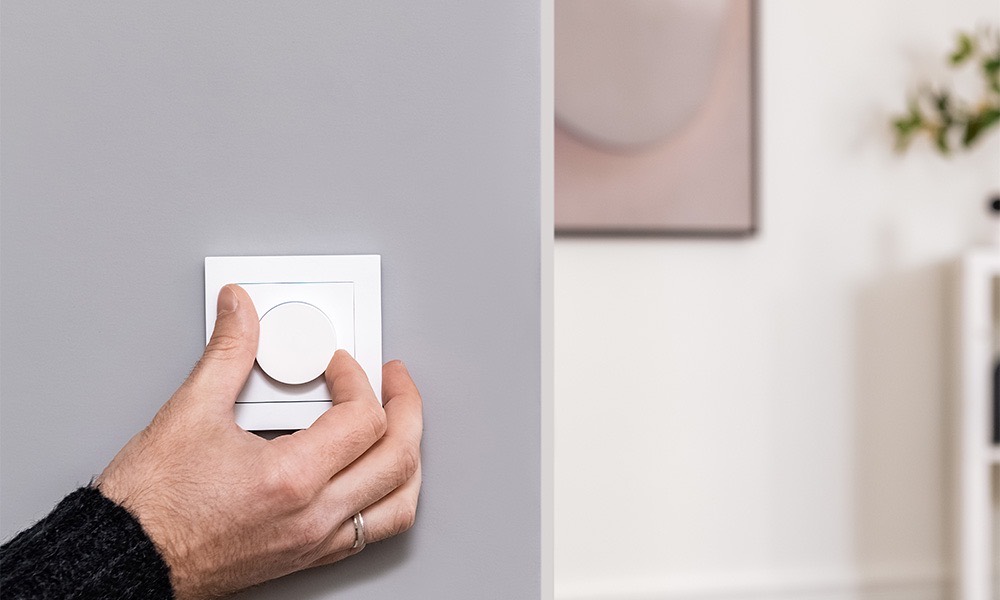

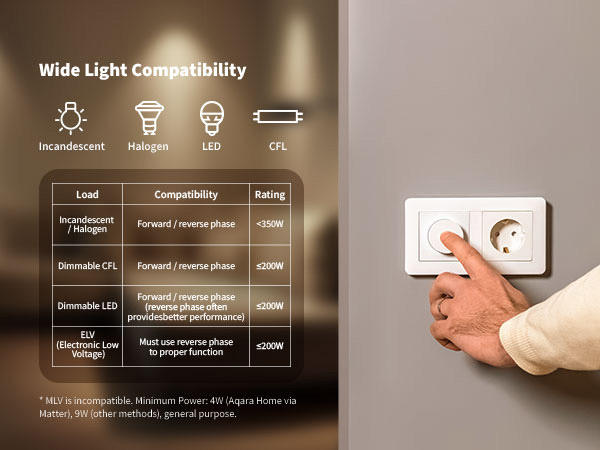

  • Multi Functional Dial: 1% precision seamless dimming with adjustable minimum and maximum brightness levels. Compatible with halogen lamps, fluorescent lights, incandescent lamps and dimmable LED lamps, users can manually switch between leading and trailing edge dimming modes for better compatibility with various light types.
  • Built-in wireless switch: With a built-in wireless switch, it can enable an automation or scene at your convenience.
  • Thread and Zigbee: This device supports Thread and Zigbee mode, enabling Matter connectivity and Aqara functionalities with protocol switching. Its Thread communication protocol allows the device to connect to Matter-supported third-party ecosystems.

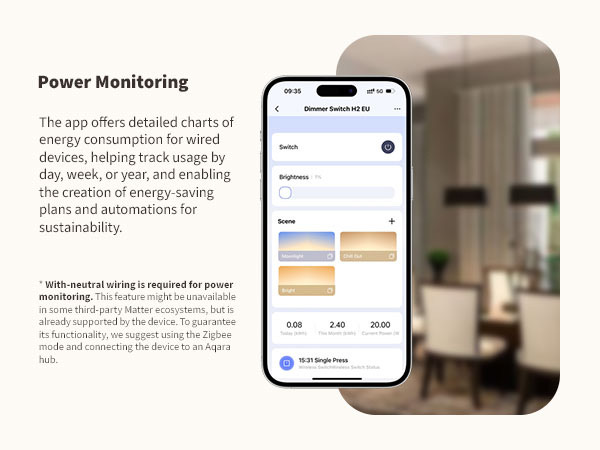

  • Optional neutral wiring: This switch supports both neutral and no neutral wiring, offering hassle-free installation. Homes with neutral wiring gain overload protection and advanced features like power monitoring, ensuring compatibility with any home configuration

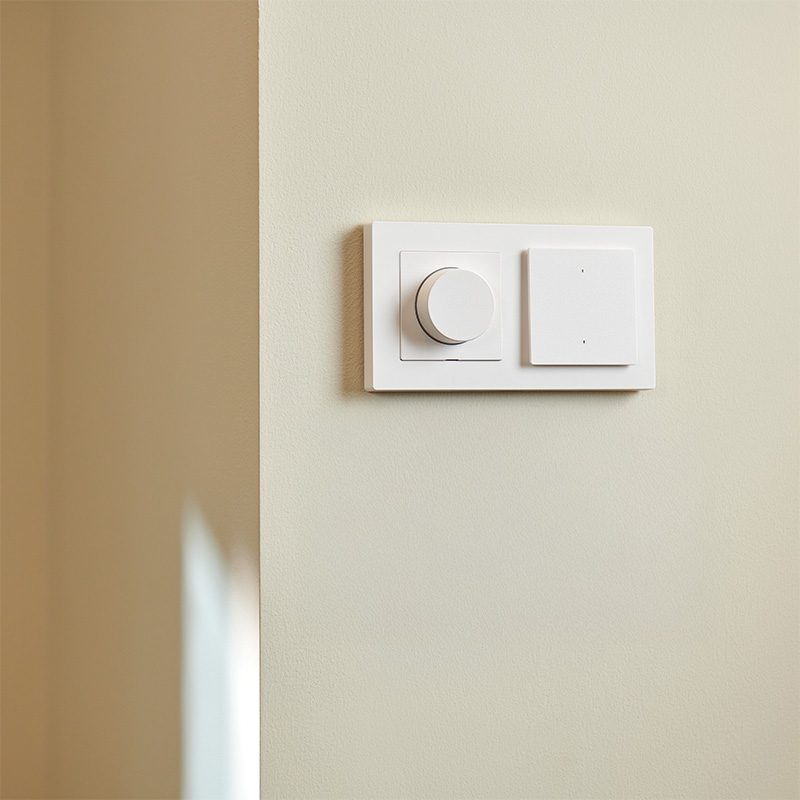

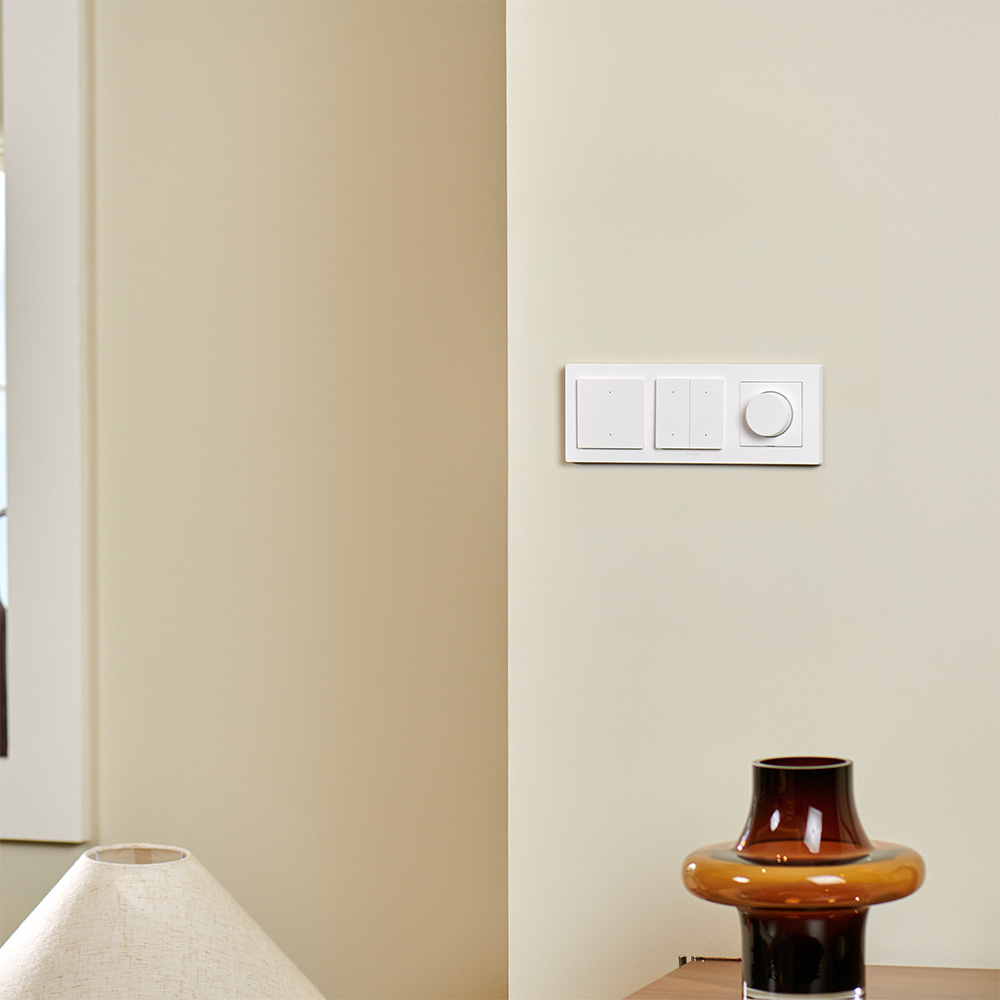

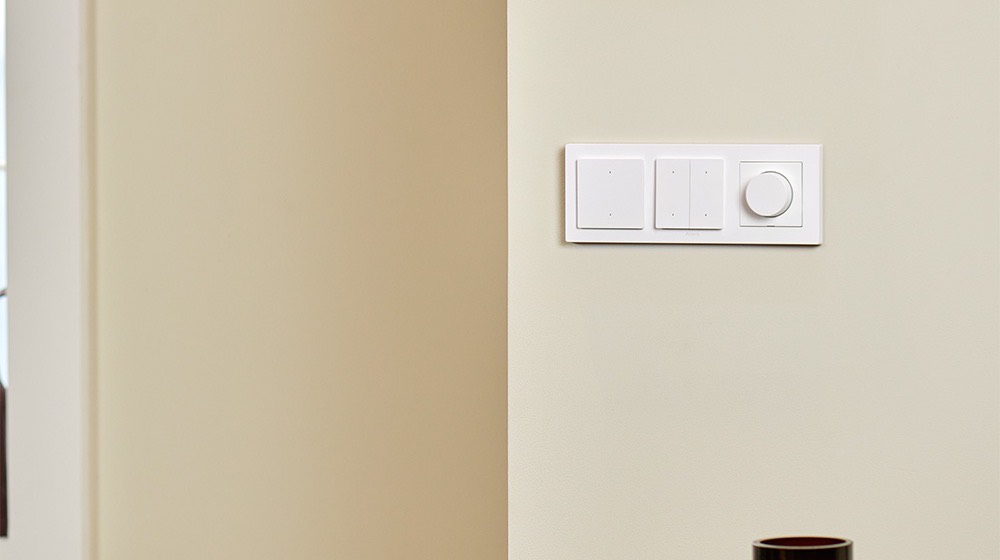

  • 55mm frame support: The Aqara Dimmer Switch H2 fits standard 55mm switch systems and third-party frames like Gira and Merten, offering flexibility and compatibility with existing infrastructure, reducing the need for custom fittings or adjustments.

*Wireless switch is only available in Zigbee mode and connecting the device to an Aqara hub
** To use the device with particular Matter ecosystem, a Matter controller and Thread border router is required
***For Zigbee mode, Aqara Zigbee hub is needed

Specifications

Model:

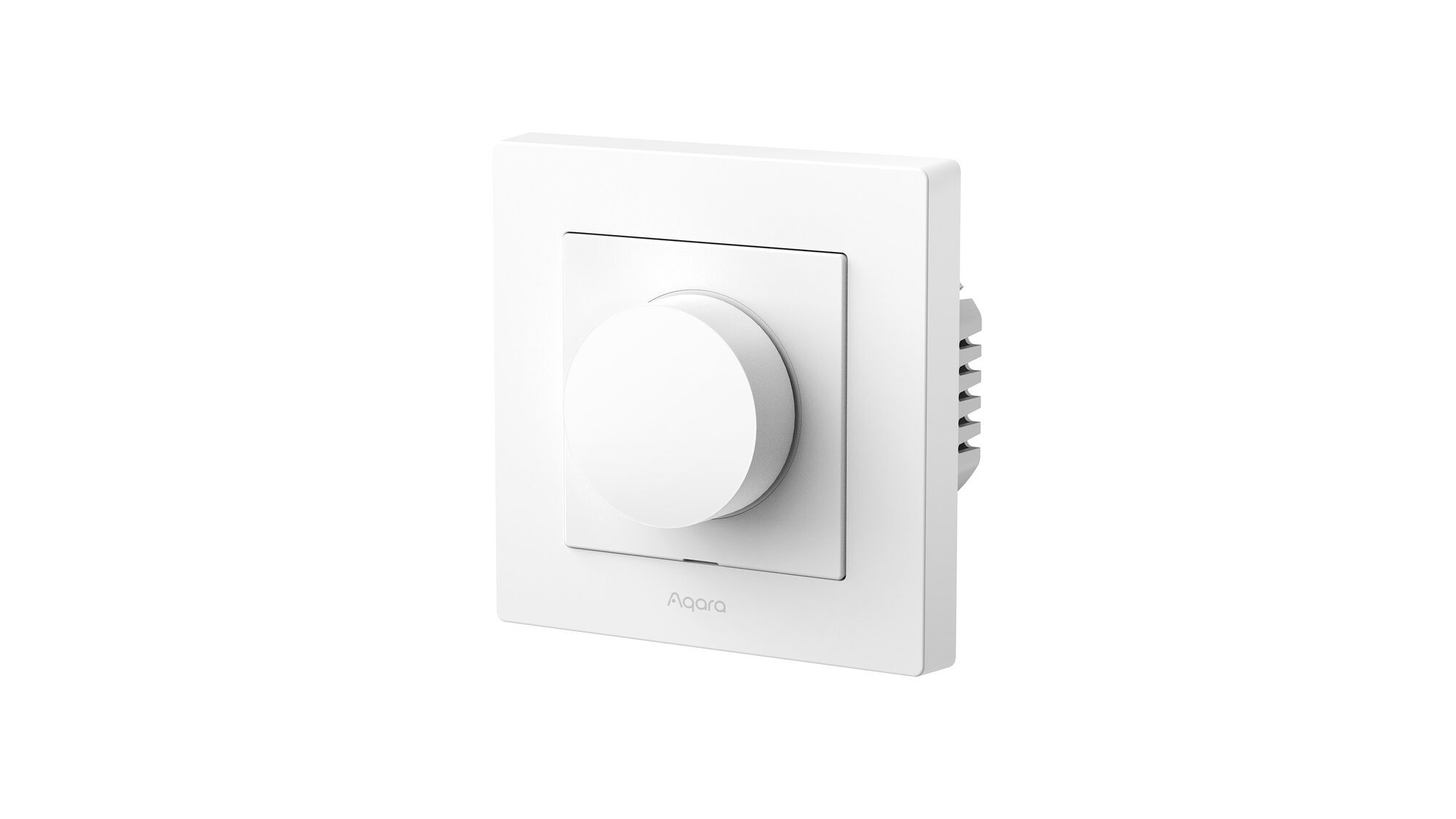

Color: White / Grey
Dimensions: 86 × 86 × 55.45 mm (3.39 ×   3.39 ×   2.18 in.)
Rated Parameters: 200-240V~/50Hz/60Hz
Wireless Protocol: Thread, Zigbee, BLE
Operating Temperature: 0°C～40°C
Operating Humidity: 0%~95% RH, non-condensing

Additional information

Colour

White, Grey
